30ton 40ton 50ton Continuous Pyrolysis Recycle Waste Tyre/Plastic/Rubber To Oil Equipment

30ton 40ton 50ton Continuous Pyrolysis Recycle Waste Tyre/Plastic/Rubber To Oil Equipment

    • 30ton 40ton 50ton Continuous Pyrolysis Recycle Waste Tyre/Plastic/Rubber To Oil Equipment
    • 30ton 40ton 50ton Continuous Pyrolysis Recycle Waste Tyre/Plastic/Rubber To Oil Equipment
    • 30ton 40ton 50ton Continuous Pyrolysis Recycle Waste Tyre/Plastic/Rubber To Oil Equipment
    • 30ton 40ton 50ton Continuous Pyrolysis Recycle Waste Tyre/Plastic/Rubber To Oil Equipment
    • 30ton 40ton 50ton Continuous Pyrolysis Recycle Waste Tyre/Plastic/Rubber To Oil Equipment
  • 30ton 40ton 50ton Continuous Pyrolysis Recycle Waste Tyre/Plastic/Rubber To Oil Equipment

    Product Details:

    Place of Origin: China
    Brand Name: HNJZ
    Certification: CE
    Model Number: 50ton

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD 300000-500000 per set
    Packaging Details: naked package
    Delivery Time: 45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 30 sets per month
    Contact Now
    Detailed Product Description
    Raw Material: Waste Tyre And Plastic, Rubber End Product: Fuel Oil ,Steel Carbon Black,Steel Wire
    Name: Fully Continuous Waste Tyre/plastic/rubber Prolysis Plant Working Type: Fully Continuous
    24 Hour Handling Capacity: 50ton Per Day 24 Hour Oil Production: 22T
    Heating Way: Directly Heating Cooling Way: Water Cooling
    Water Consumption: 16T/H Noise: ≤85DB(A)
    Area: 55*10*9M

    30 Tons Full Automatic Continuous Waste Tyre Pyrolysis Plant To Get 50% Diesel

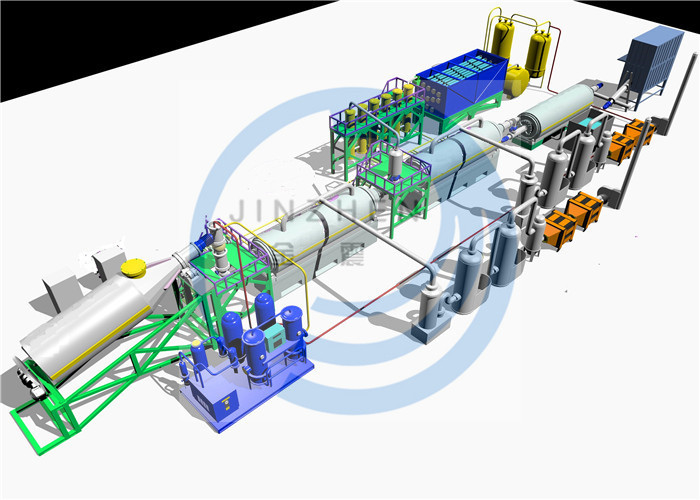

    Continuous Waste Tyre Pyrolysis Plant

    Pyrolysis Plant is used for recycling waste tire, waste plastic, waste rubber to fuel oil. According to the actual situation in every country and district, we developed different models of Batch Pyrolysis Plants for waste tires, rubber and plastic with daily capacity 25-40 tons.



    The Project Report



    Raw Material can be processed:

    Waste tyre, Used rubber, Waste plastic (PP,PE,PS, HDPE), Oil sludge,

    Fuel as heating material :

    Wood, Coal, Carbon briquette, Natural gas, Diesel, Fuel oil, Heavy oil

    End product output ( waste tyre as feeding material )

    Fuel oil : 40%-45%

    carbon black : 30%-35%

    waste gas: 3%-5%

    wire: 10%-15%

    Area Covered:

    Machine covered: 300square meters

    All including ( office, storage and ect): 600 square meters

    Operation workers per shift :

    3-4 people



    Specification

    No
    Specification
    Fully continuous waste tyre/plastic/rubber prolysis plant
    1
    Model
    HNJZ30
    HNJZ40
    HNJZ50
    HNJZ60
    2
    Working type
    Fully continuous
    Fully continuous
    Fully continuous
    Fully continuous
    3
    Raw Material
    Waste tires,waste rubber,waste plastic,waste acrylic,oily sludge
    4
    24 hour handling capacity
    30T
    40T
    50T
    60T
    5
    24 hour oil production
    14T
    18T
    22T
    27T
    6
    Heating way
    Directly heating
    Directly heating
    Directly heating
    Directly heating
    7
    Working pressure
    Ordinary pressure
    Ordinary pressure
    Ordinary pressure
    Ordinary pressure
    8
    Cooling way
    Water cooling
    Water cooling
    Water cooling
    Water cooling
    9
    Water consumption
    10T/H
    12T/H
    16T/H
    20T/H
    10
    Noise
    ≤85DB(A)
    ≤85DB(A)
    ≤85DB(A)
    ≤85DB(A)
    11
    Total weight
    60T
    68T
    75T
    80T
    12
    Area
    47*10*9M
    53*10*9M
    55*10*9M
    58*10*9M

    Performance Feature

    1. Safety. We treat safety as the first important thing in production.

    1) Two devices to avoid backfire in production: oil-water separator and anti-back fire device.

    2) Vacuum device makes reactor working under ordinary pressure or negative pressure.

    3) Temperature monitoring device to avoid excessive working temperature.

    4) Pressure gage to monitor the pressure. If it goes above a certain level, the bell will alarm and the safety valve will release the pressure automatically.

    5) Carbon black is discharged in a closed situation to avoid catching fire.

    2. Environmental protection 10 ton used tire pyrolysis plant

    1) The flue gas (caused by burning fuel to heat the reactor) will be purified and cooled by dust removal device, then can be released into air through chimney.

    2) The procedure to remove carbon black is working under closed situation to avoid pollution.

    3. Energy saving waste tire recycling pyrolysis plant

    1) The flame path is designed as spiral so that the quantity of heat can be fully used.

    2) The residual gas from pyrolysis is recycled to furnace burning to heating the reactor.

    3) The insulation cover is formed by 3 levels: steel plate, rock wool and refractory cement. Excellent thermal insulation effect helps saving fuel.

    4. Long service life

    1) The material of reactor is Q345R boiler plate with 16/18mm thickness which is produced by Chinese well-known enterprise. The head of reactor and accessories are using one-piece molding shell cover rather than welded plate.

    2) All cutting, rolling and welding works are finished by automatic machines.

    3) We know quite well about the material quality and manufacturing process, that’s why we are confident in the service life of our products.

    4) We also supply installation service, training service and one year warranty.

    Applications
    It is applied to extract fuel oil from waste tires, rubbers, plastics, soles, life garbage, cable skin and so on .
    seperating crude carbon black, steel wires. the sync gas produced can also be recycled to use as fuel to heat reactor, considerable cost of tire plastic plant.

    30ton 40ton 50ton Continuous Pyrolysis Recycle Waste Tyre/Plastic/Rubber To Oil Equipment

    30ton 40ton 50ton Continuous Pyrolysis Recycle Waste Tyre/Plastic/Rubber To Oil Equipment30ton 40ton 50ton Continuous Pyrolysis Recycle Waste Tyre/Plastic/Rubber To Oil Equipment30ton 40ton 50ton Continuous Pyrolysis Recycle Waste Tyre/Plastic/Rubber To Oil Equipment30ton 40ton 50ton Continuous Pyrolysis Recycle Waste Tyre/Plastic/Rubber To Oil Equipment

    30ton 40ton 50ton Continuous Pyrolysis Recycle Waste Tyre/Plastic/Rubber To Oil Equipment
