| Place of Origin: | China |
| Brand Name: | HNJZ |
| Certification: | CE |
| Model Number: | 30ton |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 300000-500000 per set |
| Packaging Details: | naked package |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 sets per month |
| Raw Material: | Waste Tyre And Plastic, Rubber | End Product: | Fuel Oil ,Steel Carbon Black,Steel Wire |
|---|---|---|---|
| Name: | Fully Continuous Waste Tyre/plastic/rubber Prolysis Plant | Working Type: | Fully Continuous |
| 24 Hour Handling Capacity: | 30ton Per Day | 24 Hour Oil Production: | 14T |
| Heating Way: | Directly Heating | Cooling Way: | Water Cooling |
| Water Consumption: | 10T/H | Noise: | ≤85DB(A) |
| Area: | 47*10*9M |
30 Tons Full Automatic Continuous Waste Tyre Pyrolysis Plant To Get 50% Diesel

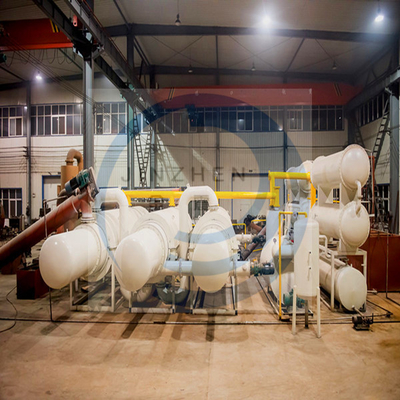

Continuous Waste Tyre Pyrolysis Plant
Pyrolysis Plant is used for recycling waste tire, waste plastic, waste rubber to fuel oil. According to the actual situation in every country and district, we developed different models of Batch Pyrolysis Plants for waste tires, rubber and plastic with daily capacity 25-40 tons.
The Project Report
Raw Material can be processed:
Waste tyre, Used rubber, Waste plastic (PP,PE,PS, HDPE), Oil sludge,
Fuel as heating material :
Wood, Coal, Carbon briquette, Natural gas, Diesel, Fuel oil, Heavy oil

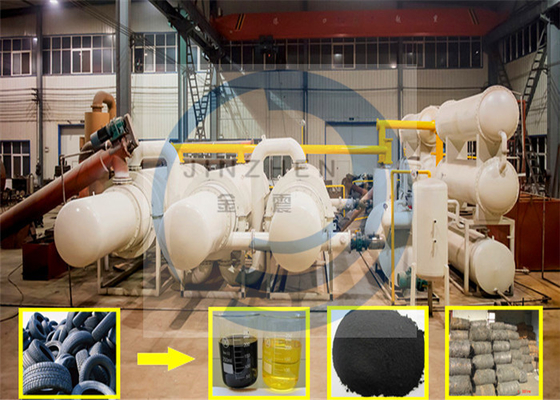

End product output ( waste tyre as feeding material )
Fuel oil : 40%-45%
carbon black : 30%-35%
waste gas: 3%-5%
wire: 10%-15%
Area Covered:
Machine covered: 300square meters
All including ( office, storage and ect): 600 square meters
Operation workers per shift :
3-4 people
Specification
Performance Feature
1. Safety. We treat safety as the first important thing in production.
1) Two devices to avoid backfire in production: oil-water separator and anti-back fire device.
2) Vacuum device makes reactor working under ordinary pressure or negative pressure.
3) Temperature monitoring device to avoid excessive working temperature.
4) Pressure gage to monitor the pressure. If it goes above a certain level, the bell will alarm and the safety valve will release the pressure automatically.
5) Carbon black is discharged in a closed situation to avoid catching fire.
2. Environmental protection 10 ton used tire pyrolysis plant
1) The flue gas (caused by burning fuel to heat the reactor) will be purified and cooled by dust removal device, then can be released into air through chimney.
2) The procedure to remove carbon black is working under closed situation to avoid pollution.
3. Energy saving waste tire recycling pyrolysis plant
1) The flame path is designed as spiral so that the quantity of heat can be fully used.
2) The residual gas from pyrolysis is recycled to furnace burning to heating the reactor.
3) The insulation cover is formed by 3 levels: steel plate, rock wool and refractory cement. Excellent thermal insulation effect helps saving fuel.
4. Long service life

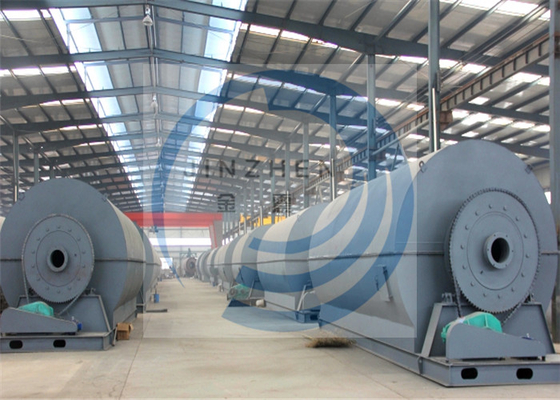

1) The material of reactor is Q345R boiler plate with 16/18mm thickness which is produced by Chinese well-known enterprise. The head of reactor and accessories are using one-piece molding shell cover rather than welded plate.
2) All cutting, rolling and welding works are finished by automatic machines.
3) We know quite well about the material quality and manufacturing process, that’s why we are confident in the service life of our products.
4) We also supply installation service, training service and one year warranty.
Applications
It is applied to extract fuel oil from waste tires, rubbers, plastics, soles, life garbage, cable skin and so on .
seperating crude carbon black, steel wires. the sync gas produced can also be recycled to use as fuel to heat reactor, considerable cost of tire plastic plant.
