European Standard Continuous Waste Tyre/Plastic Pyrolysis Plant To Fuel Oil

European Standard Continuous Waste Tyre/Plastic Pyrolysis Plant To Fuel Oil

    • European Standard  Continuous Waste Tyre/Plastic Pyrolysis Plant To Fuel Oil
    • European Standard  Continuous Waste Tyre/Plastic Pyrolysis Plant To Fuel Oil
    • European Standard  Continuous Waste Tyre/Plastic Pyrolysis Plant To Fuel Oil
    • European Standard  Continuous Waste Tyre/Plastic Pyrolysis Plant To Fuel Oil
    • European Standard  Continuous Waste Tyre/Plastic Pyrolysis Plant To Fuel Oil
  • European Standard  Continuous Waste Tyre/Plastic Pyrolysis Plant To Fuel Oil

    Product Details:

    Place of Origin: China
    Brand Name: HNJZ
    Certification: CE
    Model Number: 30ton

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD 300000-800000 per set
    Packaging Details: naked package
    Delivery Time: 45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 30 sets per month
    Contact Now
    Detailed Product Description
    Raw Material: Waste Tyre And Plastic, Rubber End Product: Fuel Oil ,Steel Carbon Black,Steel Wire
    Name: Fully Continuous Waste Tyre/plastic/rubber Prolysis Plant Working Type: Fully Continuous
    24 Hour Handling Capacity: 30ton Per Day 24 Hour Oil Production: 14T
    Heating Way: Directly Heating Cooling Way: Water Cooling
    Water Consumption: 10T/H Noise: ≤85DB(A)
    Area: 47*10*9M

    European Standard Continuous Waste Tyre/Plastic Pyrolysis Plant To Fuel Oil

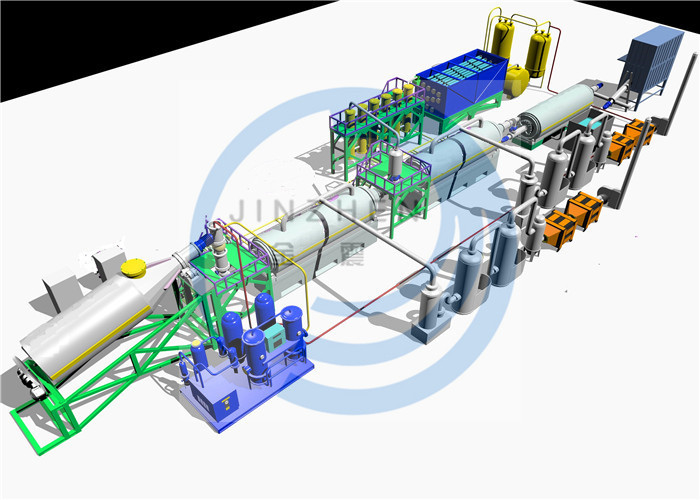

    The fully continuous horizontal type pyrolysis system applies automatic feeding and discharging process, the raw
    material is pyrolysied during the moving inside the reactor,which is of high automation,big capacity,and highly safety.

    Tyre pyrolysis plant adopt the latest pyrolysis technology. It can process the waste tyres or plastics with high temperature in a oxygen-free condition. Through the pyrolysis process, you can get fuel oil, carbon black, steel wire and combustible gas from waste tyres, or get fuel oil, carbon black and combustible gas from waste plastic. The whole process is safe and environmentally friendly.

    Waste Material
    Fianl Output

    Tyres
    1. 45%-50% crude oil
    2. 10%-15% steel wire
    3. 30% carbon black
    Plastics
    1. 50%-75% crude oil
    2. 20%-45% carbon black
    Rubbers
    1. 50%-55% crude oil
    2. 40%-45% carbon black
    Appliacations of Tyre pyrolysis plant output products:
    Output Products
    Applications
    Fuel Oil
    * Can be directly sold to boiler factory, cement factory,glass factory etc.
    * Can be refined to diesel by distillation machine.
    * Used for heating.
    Carbon black
    * Can be directly sold to cement or brick factory.
    * Pellet it used for heating.
    Steel wire
    * Directly sold to steel and scrap dealers.
    * Treated by tire cutter before pyrolysis it, to get a cleaner and higher value steel wire.
    Waste gas
    * used for the heating and the smoke will be treated eco-friendly.

    Specification

    No
    Specification
    Fully continuous waste tyre/plastic/rubber prolysis plant
    1
    Model
    HNJZ30
    HNJZ40
    HNJZ50
    HNJZ60
    2
    Working type
    Fully continuous
    Fully continuous
    Fully continuous
    Fully continuous
    3
    Raw Material
    Waste tires,waste rubber,waste plastic,waste acrylic,oily sludge
    4
    24 hour handling capacity
    30T
    40T
    50T
    60T
    5
    24 hour oil production
    14T
    18T
    22T
    27T
    6
    Heating way
    Directly heating
    Directly heating
    Directly heating
    Directly heating
    7
    Working pressure
    Ordinary pressure
    Ordinary pressure
    Ordinary pressure
    Ordinary pressure
    8
    Cooling way
    Water cooling
    Water cooling
    Water cooling
    Water cooling
    9
    Water consumption
    10T/H
    12T/H
    16T/H
    20T/H
    10
    Noise
    ≤85DB(A)
    ≤85DB(A)
    ≤85DB(A)
    ≤85DB(A)
    11
    Total weight
    60T
    68T
    75T
    80T
    12
    Area
    47*10*9M
    53*10*9M
    55*10*9M
    58*10*9M

    Performance Feature

    1. Main parts and function:

    1.Heating system

    ---two heating rooms and indirect heating.

    2.Cooling system

    ---4 new design condensers to convert the oil gas into oil.

    3.Waste gas purifying system

    ---its function is to remove the acids, bad smell and dust from the waste gas, so the gas will be

    more clean and environmental friendly.

    4.Smoke purifying system

    ---its function is to remove the acids,bad smell and dust from the smoke, so the smoke into the

    air will be clean and no pollution.

    5.Carbon black discharging system

    ---we adopt the whole sealed automatic discharging system to ensure no carbon black flying out,

    so the whole process is no pollution at all.

    2.Outstanding Features:

    1.You just need preheat at the first time when the machine start producing.And then the machinecan produce lasting for 20days without stop.Because it can use the waste gas to heat the

    chamber,no need other energy.

    2.The most capacity can reach 30T/D,much bigger than other kind of plant.It is fully-automatic and fully–continuous.

    3.New design of vertical condensers.you can get high oil yield,good oil quality,high profit. 4.The carbon black and steel discharging is easier.The carbon black and big size steel

    can discharge when the chamber is hot needn’t cooling down.Very save energy.

    Applications
    It is applied to extract fuel oil from waste tires, rubbers, plastics, soles, life garbage, cable skin and so on .
    seperating crude carbon black, steel wires. the sync gas produced can also be recycled to use as fuel to heat reactor, considerable cost of tire plastic plant.

    European Standard  Continuous Waste Tyre/Plastic Pyrolysis Plant To Fuel Oil

    European Standard  Continuous Waste Tyre/Plastic Pyrolysis Plant To Fuel OilEuropean Standard  Continuous Waste Tyre/Plastic Pyrolysis Plant To Fuel OilEuropean Standard  Continuous Waste Tyre/Plastic Pyrolysis Plant To Fuel OilEuropean Standard  Continuous Waste Tyre/Plastic Pyrolysis Plant To Fuel Oil

    European Standard  Continuous Waste Tyre/Plastic Pyrolysis Plant To Fuel Oil
