Fully Continuous Waste Tyre Pyrolysis Plant To Oil And Carbon Black And Steel Wire

Fully Continuous Waste Tyre Pyrolysis Plant To Oil And Carbon Black And Steel Wire

    • Fully Continuous Waste Tyre Pyrolysis Plant To Oil And Carbon Black And Steel Wire
    • Fully Continuous Waste Tyre Pyrolysis Plant To Oil And Carbon Black And Steel Wire
    • Fully Continuous Waste Tyre Pyrolysis Plant To Oil And Carbon Black And Steel Wire
    • Fully Continuous Waste Tyre Pyrolysis Plant To Oil And Carbon Black And Steel Wire
    • Fully Continuous Waste Tyre Pyrolysis Plant To Oil And Carbon Black And Steel Wire
  • Fully Continuous Waste Tyre Pyrolysis Plant To Oil And Carbon Black And Steel Wire

    Product Details:

    Place of Origin: China
    Brand Name: HNJZ
    Certification: CE
    Model Number: 30ton

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD 300000-800000 per set
    Packaging Details: naked package
    Delivery Time: 45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 30 sets per month
    Contact Now
    Detailed Product Description
    Raw Material: Waste Tyre And Plastic, Rubber End Product: Fuel Oil ,Steel Carbon Black,Steel Wire
    Name: Fully Continuous Waste Tyre/plastic/rubber Prolysis Plant Working Type: Fully Continuous
    24 Hour Handling Capacity: 30ton Per Day 24 Hour Oil Production: 14T
    Heating Way: Directly Heating Cooling Way: Water Cooling
    Water Consumption: 10T/H Noise: ≤85DB(A)
    Area: 47*10*9M

    Fully Continuous Waste Tyre Pyrolysis Plant To Oil And Carbon Black And Steel Wire



    Tyre pyrolysis plant adopt the latest pyrolysis technology. It can process the waste tyres or plastics with high temperature in a oxygen-free condition. Through the pyrolysis process, you can get fuel oil, carbon black, steel wire and combustible gas from waste tyres, or get fuel oil, carbon black and combustible gas from waste plastic. The whole process is safe and environmentally friendly. Our pyrolysis plant have two types: continuous and batch. Many waste plastics in our lives can use waste plastic pyrolysis plant to obtain fuel oil and carbon black, and most plastics have a higher oil yield than waste tires.For details, please contact our professional project manager for consultation.

    Waste Material
    Fianl Output

    Tyres
    1. 45%-50% crude oil
    2. 10%-15% steel wire
    3. 30% carbon black
    Plastics
    1. 50%-75% crude oil
    2. 20%-45% carbon black
    Rubbers
    1. 50%-55% crude oil
    2. 40%-45% carbon black
    Appliacations of Tyre pyrolysis plant output products:
    Output Products
    Applications

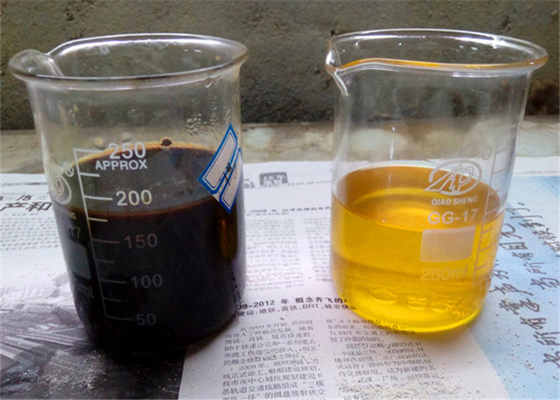

    Fuel Oil
    * Can be directly sold to boiler factory, cement factory,glass factory etc.
    * Can be refined to diesel by distillation machine.
    * Used for heating.
    Carbon black
    * Can be directly sold to cement or brick factory.
    * Pellet it used for heating.
    Steel wire
    * Directly sold to steel and scrap dealers.
    * Treated by tire cutter before pyrolysis it, to get a cleaner and higher value steel wire.
    Waste gas
    * used for the heating and the smoke will be treated eco-friendly.

    Specification

    No
    Specification
    Fully continuous waste tyre/plastic/rubber prolysis plant
    1
    Model
    HNJZ30
    HNJZ40
    HNJZ50
    HNJZ60
    2
    Working type
    Fully continuous
    Fully continuous
    Fully continuous
    Fully continuous
    3
    Raw Material
    Waste tires,waste rubber,waste plastic,waste acrylic,oily sludge
    4
    24 hour handling capacity
    30T
    40T
    50T
    60T
    5
    24 hour oil production
    14T
    18T
    22T
    27T
    6
    Heating way
    Directly heating
    Directly heating
    Directly heating
    Directly heating
    7
    Working pressure
    Ordinary pressure
    Ordinary pressure
    Ordinary pressure
    Ordinary pressure
    8
    Cooling way
    Water cooling
    Water cooling
    Water cooling
    Water cooling
    9
    Water consumption
    10T/H
    12T/H
    16T/H
    20T/H
    10
    Noise
    ≤85DB(A)
    ≤85DB(A)
    ≤85DB(A)
    ≤85DB(A)
    11
    Total weight
    60T
    68T
    75T
    80T
    12
    Area
    47*10*9M
    53*10*9M
    55*10*9M
    58*10*9M

    Performance Feature

    1). Continuous Operation
    The latest continuous-feed system has a much bigger process capacity since it doesn’t require the starting and the stopping in the
    pyrolysis reaction circle. The increased automation clearly has the big advantage of reduced downtime, reduced labor cost and increased efficiency over the batch feed generation

    2)process material
    waste tire, Oil field sludge, domestic waste plastic, industrial waste plastic, waste rubber and so on.
    3) Raw material pretreatment
    To keep continuous feeding and discharge system, it requires the waste tyres should be in small size. So before continuous pyrolysis process, the waste tires should be shredded into rubber powder.

    Applications
    It is applied to extract fuel oil from waste tires, rubbers, plastics, soles, life garbage, cable skin and so on .
    seperating crude carbon black, steel wires. the sync gas produced can also be recycled to use as fuel to heat reactor, considerable cost of tire plastic plant.

    Fully Continuous Waste Tyre Pyrolysis Plant To Oil And Carbon Black And Steel Wire

    Fully Continuous Waste Tyre Pyrolysis Plant To Oil And Carbon Black And Steel Wire

    Fully Continuous Waste Tyre Pyrolysis Plant To Oil And Carbon Black And Steel WireFully Continuous Waste Tyre Pyrolysis Plant To Oil And Carbon Black And Steel Wire

    Fully Continuous Waste Tyre Pyrolysis Plant To Oil And Carbon Black And Steel Wire
