30 Ton Per Day Full Continuous Waste Rubber Tyre Pyrolysis Oil Plant

30 Ton Per Day Full Continuous Waste Rubber Tyre Pyrolysis Oil Plant

    • 30 Ton Per Day Full Continuous Waste Rubber Tyre Pyrolysis Oil Plant
    • 30 Ton Per Day Full Continuous Waste Rubber Tyre Pyrolysis Oil Plant
    • 30 Ton Per Day Full Continuous Waste Rubber Tyre Pyrolysis Oil Plant
    • 30 Ton Per Day Full Continuous Waste Rubber Tyre Pyrolysis Oil Plant
    • 30 Ton Per Day Full Continuous Waste Rubber Tyre Pyrolysis Oil Plant
  • 30 Ton Per Day Full Continuous Waste Rubber Tyre Pyrolysis Oil Plant

    Product Details:

    Place of Origin: China
    Brand Name: HNJZ
    Certification: CE
    Model Number: 30ton

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD 300000-800000 per set
    Packaging Details: naked package
    Delivery Time: 45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 30 sets per month
    Contact Now
    Detailed Product Description
    Raw Material: Waste Tyre And Plastic, Rubber End Product: Fuel Oil ,Steel Carbon Black,Steel Wire
    Name: Fully Continuous Waste Tyre/plastic/rubber Prolysis Plant Working Type: Fully Continuous
    24 Hour Handling Capacity: 30ton Per Day 24 Hour Oil Production: 14T
    Heating Way: Directly Heating Cooling Way: Water Cooling
    Water Consumption: 10T/H Noise: ≤85DB(A)
    Area: 47*10*9M

    30 Ton Per Day Full Continuous Waste Rubber Tyre Pyrolysis Oil Plant

    waste tire pyrolysis plant is decomposed into oil vapor by high temperature pyrolysis technology, and the oil vapor enters the cooling system through the oil gas separator, wherein the oil flows to the oil tank, and the pyrolysis gas passes through water seal to the gas recovery system to become the main furnace fuel. Realize continuous production.

    fully continuous horizontal type pyrolysis system applies automatic feeding and discharging process, the raw
    material is pyrolysied during the moving inside the reactor,which is of high automation,big capacity,and highly safety.

    Waste Material
    Fianl Output

    Tyres
    1. 45%-50% crude oil
    2. 10%-15% steel wire
    3. 30% carbon black
    Plastics
    1. 50%-75% crude oil
    2. 20%-45% carbon black
    Rubbers
    1. 50%-55% crude oil
    2. 40%-45% carbon black
    Appliacations of Tyre pyrolysis plant output products:
    Output Products
    Applications
    Fuel Oil
    * Can be directly sold to boiler factory, cement factory,glass factory etc.
    * Can be refined to diesel by distillation machine.
    * Used for heating.
    Carbon black
    * Can be directly sold to cement or brick factory.
    * Pellet it used for heating.
    Steel wire
    * Directly sold to steel and scrap dealers.
    * Treated by tire cutter before pyrolysis it, to get a cleaner and higher value steel wire.
    Waste gas
    * used for the heating and the smoke will be treated eco-friendly.

    Specification

    No
    Specification
    Fully continuous waste tyre/plastic/rubber prolysis plant
    1
    Model
    HNJZ30
    HNJZ40
    HNJZ50
    HNJZ60
    2
    Working type
    Fully continuous
    Fully continuous
    Fully continuous
    Fully continuous
    3
    Raw Material
    Waste tires,waste rubber,waste plastic,waste acrylic,oily sludge
    4
    24 hour handling capacity
    30T
    40T
    50T
    60T
    5
    24 hour oil production
    14T
    18T
    22T
    27T
    6
    Heating way
    Directly heating
    Directly heating
    Directly heating
    Directly heating
    7
    Working pressure
    Ordinary pressure
    Ordinary pressure
    Ordinary pressure
    Ordinary pressure
    8
    Cooling way
    Water cooling
    Water cooling
    Water cooling
    Water cooling
    9
    Water consumption
    10T/H
    12T/H
    16T/H
    20T/H
    10
    Noise
    ≤85DB(A)
    ≤85DB(A)
    ≤85DB(A)
    ≤85DB(A)
    11
    Total weight
    60T
    68T
    75T
    80T
    12
    Area
    47*10*9M
    53*10*9M
    55*10*9M
    58*10*9M

    Performance Feature

    •Internal screw rotatory pyrolysis. No coking.

    •Hot melt processing in advance,process generated HCL specially,more environmental protection.

    •Adopt multilevel cooling design,to get more fuel oil.

    •Hot air heat,cooperated with low temperature pyrolysis catalyst, extend working life of plant.

    •Enclosed production all the way,no leakage and no dust loss,environmental protection.

    •Exhaust gas multistage processed,gas discharge reach European Standard level.

    Technological Process

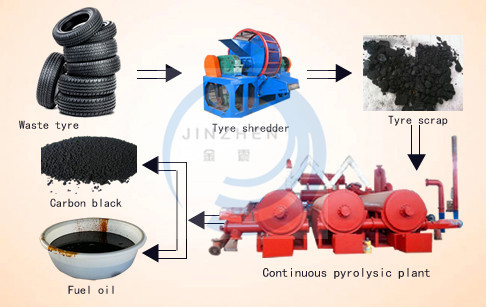

    •Waste tyre and medical waste sent into fuel preheater by conveyor to melt. Process generated HCL specially.

    •Melted fuel continuously sent into reactor,and finish pyrolysis under low pressured catalyst.

    •After generated gas during pyrolysis separates in gas-liquid separator, liquify in condenser and get fuel oil. After fixed bed second catalyst and dewaxing,can get the fuel oil with high quality.

    •Carbon residue after pyrolysis output continuously by cooling conveyor,and made to be carbon rod as fuel.

    •Flammable gas goes into exhaust gas treatment tank to desulfur,then extracted by vacuum pump and enter into water sealed tank,sent to hot air stove to burn.

    Applications
    It is applied to extract fuel oil from waste tires, rubbers, plastics, soles, life garbage, cable skin and so on .
    seperating crude carbon black, steel wires. the sync gas produced can also be recycled to use as fuel to heat reactor, considerable cost of tire plastic plant.

    30 Ton Per Day Full Continuous Waste Rubber Tyre Pyrolysis Oil Plant

    30 Ton Per Day Full Continuous Waste Rubber Tyre Pyrolysis Oil Plant30 Ton Per Day Full Continuous Waste Rubber Tyre Pyrolysis Oil Plant

    30 Ton Per Day Full Continuous Waste Rubber Tyre Pyrolysis Oil Plant
