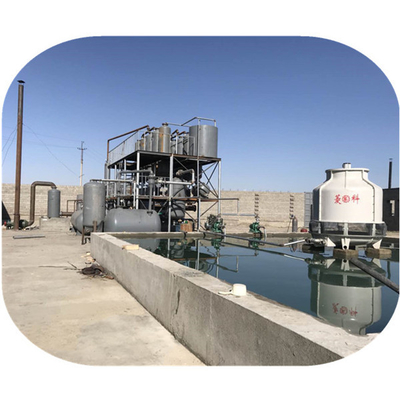

High Oil Output Black Oil Waste Engine Oil Refining Plant for making diesel

High Oil Output Black Oil Waste Engine Oil Refining Plant for making diesel

    • High Oil Output Black Oil Waste Engine Oil Refining Plant for making diesel
    • High Oil Output Black Oil Waste Engine Oil Refining Plant for making diesel
    • High Oil Output Black Oil Waste Engine Oil Refining Plant for making diesel
    • High Oil Output Black Oil Waste Engine Oil Refining Plant for making diesel
  • High Oil Output Black Oil Waste Engine Oil Refining Plant for making diesel

    Product Details:

    Place of Origin: China
    Brand Name: HNJZ
    Certification: IS9001
    Model Number: JL-15 15ton

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD 20000
    Packaging Details: Capacity : 5Tons/day, need 3*40HQ containers
    Delivery Time: 25 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 50 set per month
    Contact Now
    Detailed Product Description
    Product: Waste Engine Oil Refining Plant Capacity: 5TPD, 10TPD, 20TPD, 30TPD...100TPD
    Working Type: Continuous Working, Semi-Continuous Working Automatic Degree: Fully Automatic, Semi-Automatic
    Applicable Material: Waste Engine Oil Pyrolysis Oil Tyre Oil Plastic Oil Crude Oil Used Motor Oil Heavy Oil Waste Lubricating Oil Heating Fuel: Fuel Oil, Natural Gas, Electric, Coal, Firewood
    Reactor Material: Q345R Steel Plate, Alloy Steel Plate Final Product: Diesel
    Vacuum Degree: -0.06-0.09MPa Oil Heating Temp: 175℃-400℃
    Noise: ≤70dB Oil Yield: 85%
    Installation Space: 35m*15m Manpower: 1-2 Person/Shift

    High Oil Output Black Oil Waste Engine Oil Refining Plant for making diesel



    Waste engine oil can be refined into valuable diesel fuel through catalytic cracking and high temperature distillation technology. It is a distillation device based on pyrolysis catalytic technology. After the oil is distilled and catalyzed by the distillation plant, the main parameters of the final product are the same as diesel, the color is light yellow, and the color is bright.

    Project Details.
    1. Used engine oil ,tyre pyrolysis oil , plastic oil , crude oil , sludge oil,furnace oil as input raw material.
    2. Synthetic diesel as final product.
    3. 10 ton distillation unit with latest integrated design, fast installation and easy operation.
    4. Exclusive technology and Environmental friendly.
    5. Heating fuel can be coal , wood , oil , gas and electricity.

    SPECIFICATION OF WASTE OIL DISTILLATION PLANT
    Capacity 3 TON , 5 TON , 10 TON , 30 TON ...
    Working type batch type and contnuous type
    Avaiable raw material Pyrolysis oil ,used motor oil , furnace oil , mixed waste oil , hydrulic oil , sludge oil etc.
    Heating fuel coal , wood , pyrolysis oil , natural gas
    Reactor raw material Q245R steel plate , Q345R boiler steel plate or customized support
    Machine landing area 300-400 square meter (various by different capacity)
    Operators 2 workers per shift
    One batch time 17.5-21.5 hours
    Life span 550-750 batches
    Tyre feeding Auto-feeding
    Space cover 300-400sqm

    Used Oil Distillation plant works as follows:
    1. Pump waste oil into distillation reactor by oil pump.
    2. Heat the reactor, and the liquid oil will slowly become oil gas, oil gas will go through catalytic chamber and condenser, then diesel will be cooled out first by controlling the temperature over 150 Celsius degrees.
    3.The gasoline will be cooled out when the temperature is below 150 Celsius degrees, the rest of the system is same as pyrolysis system.

    High Oil Output Black Oil Waste Engine Oil Refining Plant for making diesel

    Features:
    1. Easy to operate, 1 ~ 2 workers can easily operate the machine.
    2. Environmentally friendly in the whole operation, no smoke, no odor, without secondary pollution, the whole process is all sealed, won’t release any gas harmful to human and environment,
    3. Series BOD System can recycle & distill various dirty black oils including waste engine oil, lube oil, gasoline oil, diesel oil, rubber oil, plastic oil, and other lubricant oil, and convert them to diesel oil and gasoline oil.
    4. High quality and quantity of refined oil obtained through output, no any discoloration caused by oxidation, no any bad smelling/ odor.
    5. Low operation cost only contains followings:
    1) catalyst chemical, cost less than USD 30 to refine one ton of waste oil.
    2) Heat energy consumption: 105 kcal per ton of waste oil
    3) Power consumption: 40 KW to recycle 1 ton of waste oil
    6. With High degree of automation in the whole operation, advanced designing and fabrication technology.
    7. Adopt the water circulation method on atmospheric and vacuum distillation unit, very safe. And after decompression on the whole system, refined oil’s production quantity and quality are increased obviously.
    8. The whole process is performed without acid and clay which are forbidden in many countries already.
    9. High effective heating system: many heating sources can be used such as natural gas, furnace oil, coal, etc..
    10. Low cost: only cost about USD30 of Pre-treatment reagent when treat 1 ton used oil. The Pre-treatment reagent is basic chemical material, can buy in every country, without any restrictions.

    Advantages:
    This oil distillation system has Widely usage: can treat all kinds of waste dirty oil like used engine oil, diesel oil, rubber oil and other waste lube oil, also a variety of waste industrial oil to be new base oil. High recovery rate: Base oil: 85%~95%; gasoline3%; diesel:3-4%; sludge:6%~8%.Do not need acid and clay, get high quality base oil : No unsaturated composition, can storage in a long-term without change its color, also no any bad smell.
    This is the most advanced technology in the world and suitable for large-scale industrial production

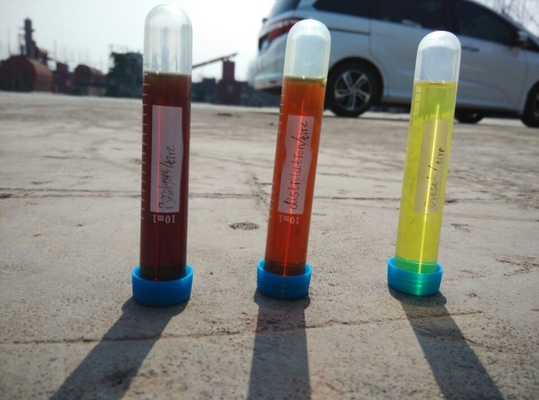

    Picture of final diesel

    High Oil Output Black Oil Waste Engine Oil Refining Plant for making diesel

    The pyrolysis oil with black color after distillation and remove color and smell , we will get synthetic diesel oil with yellow color , which can be used for diesel engines like trucks , tractors , ships etc.

    End Product and its usage

    No.
    End Production
    Yield



    Usage
    1
    Diesel
    73%
    Used for diesel engine
    2
    Gasoline
    12%
    Used for gasoline engine
    3
    Residue Oil
    9%
    * Feeding into Pyrolysis Machine for second Pyrolysis
    * Sold directly for building road
    4
    Non-Condensible Gas
    3%
    Recycle as Heating fuel after treated by Gas-treatment System
    5
    Other
    3%
    * Water and impurity 2%
    * Loss 1%
