| Place of Origin: | China |
| Brand Name: | HNJZ |
| Certification: | CE |
| Model Number: | 30ton |
| Minimum Order Quantity: | 1 sets |
|---|---|
| Price: | USD 400000 |
| Packaging Details: | naked package |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | USD 28 sets per month |
| Type: | Continuous Waste Tire & Plastic Waste To Energy Equipment | Raw Material: | Waste Rubber ,Waste Tire,waste Plastic |
|---|---|---|---|
| End Product: | Fuel Oil, Carbon Black, Steel Wire, Sync Gas | Structure: | Horizontal Rotation |
| Fuel Choice: | Coal,wood,gas ,oil | Operating Mode: | Intermittent Operation |
| NOISE: | Less Than85dB(A) | Oil Yield: | 40-45% |
| Reactor Material: | Q245R Boiler Steel | Working Mode: | Fully Continuous 24 Hours |
| Capacity: | 30ton Per Day |

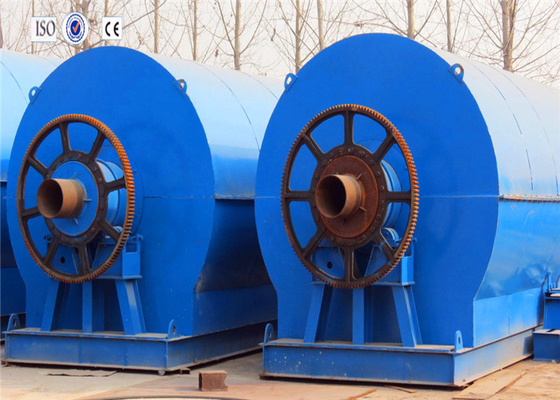

30 Ton Industrial Continuous Waste Tire & Plastic Waste To Energy Equipment
waste tire pyrolysis plant is decomposed into oil vapor by high temperature pyrolysis technology, and the oil vapor enters the cooling system through the oil gas separator, wherein the oil flows to the oil tank, and the pyrolysis gas passes through water seal to the gas recovery system to become the main furnace fuel. Realize continuous production.
Advantages
1.Outstanding Features:
a. The reactor need preheat at the first when the machine starts producing.
b. 24h continuous working for 20-30 days without any stops.
c. No need fuels, sync gas is recycled during the operation.
d. Large daily capacity:20-25T/D;25-30T/D
e. New desing of vertical condensers. Good oil quality with high profit.
f. Low requirement on the raw materials.
2. Security:
a: Adopting automatic submerged-arc welding technology
b: All of the welding will be detected by the ultrasonic nondestructive testing method to ensure the welding quality and the
welding shape.
c: Adopting manufacture process controlling system on the quality, every manufacture process, manufacture date, etc.
d: Equipped with anti-explosion device, safety valves, emergency valves, pressure and temperature meters, as well as the alarming
system.
3. Environmental-friendly:
a: Emission Standard: Adopting special gas scrubbers to remove acid gas and dust from smoke
b: Smell during operation: Fully enclosed during the operation
c: Water pollution: No pollution at all.
d: Solid pollution: the solid after pyrolysis is the crude carbon black and steel wires which can be deep-processed or sold
directly with its value.
Technical Specification
| No | Specification | Fully continuous waste tyre/plastic/rubber prolysis plant | |||
| 1 | Model | HNJZ-30 | HNJZ-40 | HNJZ-50 | HNJZ-60 |
| 2 | Working type | Fully continuous | Fully continuous | Fully continuous | Fully continuous |
| 3 | Raw Material | Waste tires,waste rubber,waste plastic,waste acrylic,oily sludge | |||
| 4 | 24 hour handling capacity | 30T | 40T | 50T | 60T |
| 5 | 24 hour oil production | 14T | 18T | 22T | 27T |
| 6 | Heating way | Directly heating | Directly heating | Directly heating | Directly heating |
| 7 | Working pressure | Ordinary pressure | Ordinary pressure | Ordinary pressure | Ordinary pressure |
| 8 | Cooling way | Water cooling | Water cooling | Water cooling | Water cooling |
| 9 | Water consumption | 10T/H | 12T/H | 16T/H | 20T/H |
| 10 | Noise | ≤85DB(A) | ≤85DB(A) | ≤85DB(A) | ≤85DB(A) |
| 11 | Total weight | 60T | 68T | 75T | 80T |
| 12 | Area | 47*10*9M | 53*10*9M | 55*10*9M | 58*10*9M |
Usage of the end products:
Crude carbon black ----make briquettes for heating use;make bricks to pave street
Pyrolysis fuel oil------ sell directly for heating oil; to refine into diesel grade oil.
Sync gas ------recycle to heat machine during production.
Applications
It is applied to extract fuel oil from waste tires, rubbers, plastics, soles, life garbage, cable skin and so on .
seperating crude carbon black, steel wires. the sync gas produced can also be recycled to use as fuel to heat reactor, considerable cost of tire plastic plant.
Where can I sell the pyrolysis oil ?
The good sales, because oil is an energy, hotels, restaurants, bath center, diesel stoves, boilers, mostly using this oil as fuel, other power plants, ceramic plants and many other enterprises to use more of this fuel. In addition, this oil through the oil processing and reconciling national standard can be directly used as fuel in engine.
Why Choose Jinzhen Machine company?
1. Qualified manufacturer and equipment with ISO and CE certificate;
2. Professional consulting team for offering free quote, market analysis and project guidance;
3. Technical department for providing technical support, project design and layout drawing;
4. Skillful installation team for field installation, commissioning and operation training;
5. Responsable after-sale service to keep customers away from troubles during daily operation
