| Place of Origin: | China |
| Brand Name: | HNJZ |
| Certification: | CE |
| Model Number: | 20ton |
| Minimum Order Quantity: | 1 sets |
|---|---|
| Price: | USD 400000 |
| Packaging Details: | naked package |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | USD 28 sets per month |
| Type: | Continuous Waste Tire & Plastic Waste To Energy Equipment | Raw Material: | Waste Rubber ,Waste Tire,waste Plastic |
|---|---|---|---|
| End Product: | Fuel Oil, Carbon Black, Steel Wire, Sync Gas | Structure: | Horizontal Rotation |
| Fuel Choice: | Coal,wood,gas ,oil | Operating Mode: | Intermittent Operation |
| NOISE: | Less Than85dB(A) | Oil Yield: | 40-45% |
| Reactor Material: | Q245R Boiler Steel | Working Mode: | Fully Continuous 24 Hours |
| Capacity: | 20ton Per Day |

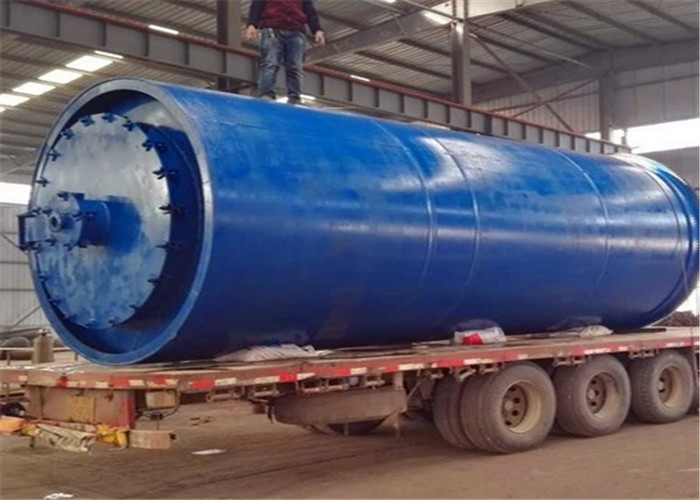

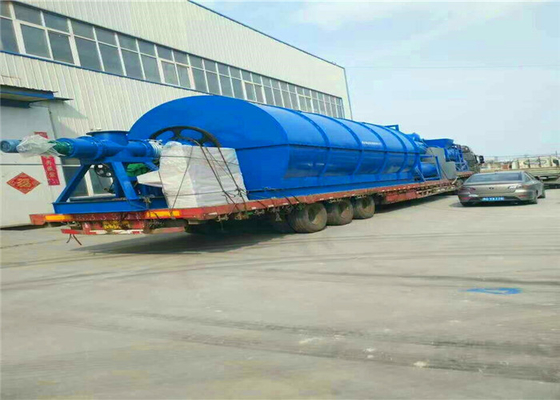

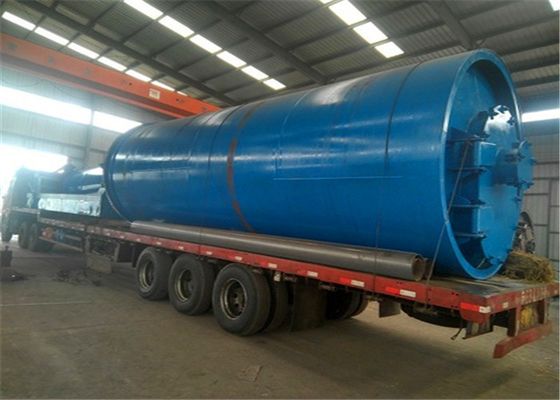

20ton Continuous Pyrolysis Recycle Waste Tyre/Plastic/Rubber To Oil Equipment
waste tyre pyrolysis plant adopt the latest pyrolysis technology and process the waste tyres/plastics with high temperature in a oxygen-free condition. Through the waste tyre pyrolysis process, you can get fuel oil, carbon black, steel wire and combustible gas from waste tyres.
Waste Tire Pyrolysis Plant can convert various waste tires and rubber into pyrolysis oil, carbon black, steel wires and combustible gas.
Features of Continuous Tyre Pyrolysis Plant
1.Large daily capacity of 20-50 tons per day and can work 24 hours without any stop for 15-20 days.
2. Auto-loading, auto-discharging and oil coming out at the same time;
3. Only need fuel for the beginning 2-3 hours, then the sync gas generates itself is enough to support heating, saving fuel cost;
4. Low requirement on the raw materials, no need tiny granule, 5cm pieces acceptable for smooth running;

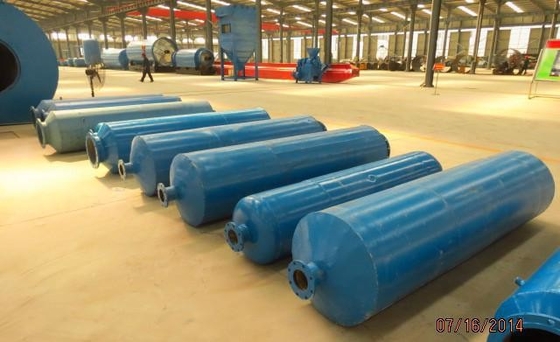

5. High efficiency condensers, more oil output, good quality oil, easy to clean.
6. Sync gas recycling system, fully burned after recycling and utilization, preventing pollution and saving fuel cost.
7. National patent smoke scrubber, can efficient remove the acid gas and dust of the smoke, environmental friendly to meet related national standards.
8. Easy to operate, need less manpower.
Technical Specification
| Item | fully continuous used tyre pyrolysis plant |
| Type | HNJZ-20 |
| Capacity | 20 T/D |
| Operating Temperature | ≤650℃ |
| Material | Q345R |
| Fuel Consumption in Start | 400kg |
| Fuel Consumption in Operation | 0(the syn gas from the system be burnt by the system itself) |
| Heating Way | hot air circulation heating |
| Tire Requirement | tyre piece ≤20mm |
| Working Pressure | normal pressure |
| Methods of Flame Restardant | nitrogen blow |
| Total Power | 190 kw |
| Boundary Dimension | 14000mm(L)×2250mm(W)×3750mm(H)×2 |
| Floor Space | 36000mm×8000mm |
| The Highest Install Elevation | 7000mm |
| Labor | 2-3 people |
| Working Life | 5-7 year |
Crude carbon black ----make briquettes for heating use;make bricks to pave streetUsage of the end products:
Pyrolysis fuel oil------ sell directly for heating oil; to refine into diesel grade oil.
Sync gas ------recycle to heat machine during production.
Applications
It is applied to extract fuel oil from waste tires, rubbers, plastics, soles, life garbage, cable skin and so on .
seperating crude carbon black, steel wires. the sync gas produced can also be recycled to use as fuel to heat reactor, considerable cost of tire plastic plant.
Service After Sale
1.Quality warranty period: One year warranty for the main reactor of pyrolysis machines
and lifetime maintenance for complete set of machines.
2.Our company sends engineers for installation and commissioning in buyer's site including the training of skills of buyer's
workers on operation, maintenance, etc.
3. Supply layout according to buyer's workshop and land, civil works information, operation manuals, etc. to the buyer.
4. For the damage caused by the users, our company provides the parts and accessories with cost price.
5. Our factory supplies the wearing parts with the cost price to clients.
