50ton 80ton New Fully Continuous Waste Tire Pyrolysis Plant Production Line for Making Fuel Oil

50ton 80ton New Fully Continuous Waste Tire Pyrolysis Plant Production Line for Making Fuel Oil

    • 50ton 80ton New Fully Continuous Waste Tire Pyrolysis Plant Production Line for Making Fuel Oil
    • 50ton 80ton New Fully Continuous Waste Tire Pyrolysis Plant Production Line for Making Fuel Oil
    • 50ton 80ton New Fully Continuous Waste Tire Pyrolysis Plant Production Line for Making Fuel Oil
    • 50ton 80ton New Fully Continuous Waste Tire Pyrolysis Plant Production Line for Making Fuel Oil
  • 50ton 80ton New Fully Continuous Waste Tire Pyrolysis Plant Production Line for Making Fuel Oil

    Product Details:

    Place of Origin: China
    Brand Name: HNJZ
    Certification: CE
    Model Number: 80ton

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 sets
    Price: USD 400000
    Packaging Details: naked package
    Delivery Time: 30 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: USD 28 sets per month
    Contact Now
    Detailed Product Description
    Type: Continuous Waste Tire Pyrolysis Plant Raw Material: Waste Rubber ,Waste Tire,waste Plastic
    End Product: Fuel Oil, Carbon Black, Steel Wire, Sync Gas Structure: Horizontal Rotation
    Fuel Choice: Coal,wood,gas ,oil Operating Mode: Intermittent Operation
    NOISE: Less Than85dB(A) Oil Yield: 40-45%
    Reactor Material: Q245R Boiler Steel Working Mode: Fully Continuous 24 Hours
    Capacity: 80ton Per Day

    50ton 80ton New Fully Continuous Waste Tire Pyrolysis Plant Production Line For Making Fuel Oil

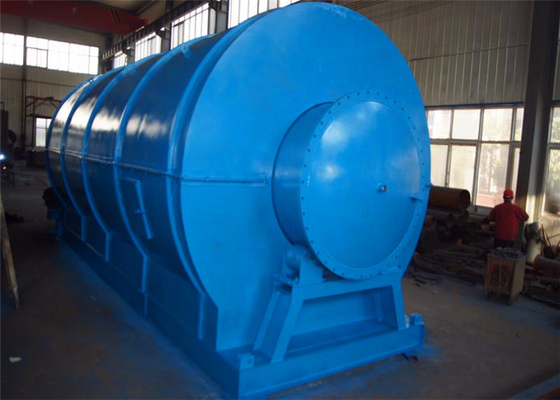

    Continuous Waste Tyre Pyrolysis Plant

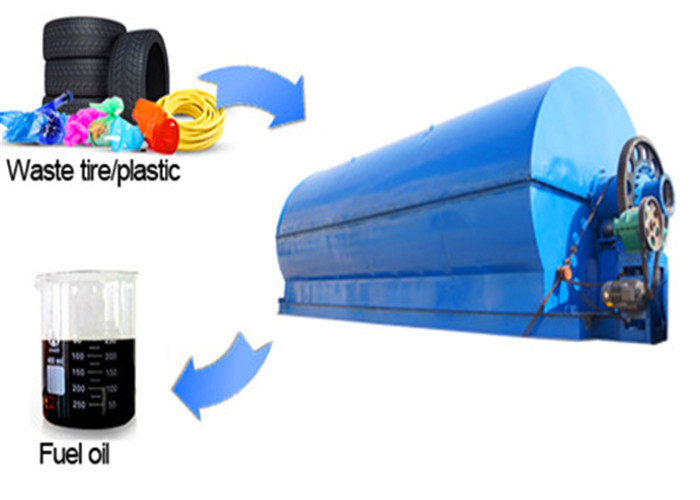

    Pyrolysis Plant is used for recycling waste tire, waste plastic, waste rubber to fuel oil. According to the actual situation in every country and district, we developed different models of Batch Pyrolysis Plants for waste tires, rubber and plastic with daily capacity 25-40 tons, Continuous Waste Tyre Pyrolysis Plant with 50ton, 80 ton.

    Description of Continuous Waste Plastic Pyrolysis Plant:
    1.Large daily capacity of 20-50 tons per day and can work 24 hours without any stop for 15-20 days.

    2. Auto-loading, auto-discharging and oil coming out at the same time;

    3. Only need fuel for the beginning 2-3 hours, then the sync gas generates itself is enough to support heating, saving fuel cost;

    4. Low requirement on the raw materials, no need tiny granule, 5cm pieces acceptable for smooth running;

    5. High efficiency condensers, more oil output, good quality oil, easy to clean.

    6. Sync gas recycling system, fully burned after recycling and utilization, preventing pollution and saving fuel cost.

    7. National patent smoke scrubber, can efficient remove the acid gas and dust of the smoke, environmental friendly to meet related national standards.

    8. Easy to operate, need less manpower.

    Usage of the end products:

    Crude carbon black ----make briquettes for heating use;make bricks to pave street

    Pyrolysis fuel oil------ sell directly for heating oil; to refine into diesel grade oil.

    Sync gas ------recycle to heat machine during production.

    Technical Specification

    NO. ITEM Technical Parameter
    1 Suitable Raw Materials Small pieces of Waste tyre,rubber,waste plastic<=10cm
    2 Operating Mode Fully Continuous Opreation
    3 Structure Horizontal Type
    4 Loading and discharging Fully automatic feeding and discharging under high temperature at same time
    5 Capacity(24h) 20ton, 30ton, 50ton, 80ton, 100ton
    6 Work Pressure Slightly Negative Pressure
    7 Oil Yield of tyres 40%-45%
    8 Reactor Rotation Speed 1R/M
    9 Power 50-60kw/h
    10 Cooling Method Cycle water
    11 Type of Drive Sprocket Wheel
    12 Heating Method Coal, tyre oil, gas
    13 NoisedB(A) <=85
    14 Main Reactor Weight(Mt) 15-18Mt
    15 Total Weight(Mt) 30—40Mt
    16 Installation Space Required 60m*30m
    17 Manpower 2persons/shift
    18 Shipment 1*40FR+3~4 HC
    19 Delivery time <=70Days



    Q: What's environmental pollution problems during the conversion process?

    A:The environmental problem includes waste water, waste gas and waste solid.



    Q:How to assure the reactor safety?

    A: Our reactor is made by automatic welder machine. Welding technology and latest X- ray testing and flaw detection to protect gas from leak.



    Q:How to solve the environmental problem when operating the reactor?

    A:1.We have the closed discharging system and it is compete closed no fly ash and no pollution.

    2.The water seal is also a gas purifier, when waste gas go through the water seal, some pyro-gas will be cooled down and the combustible gas will be sent into the heating system as fuel.

    3.The whole process is no solid waste.

    4.The emission control system can deal with waste flue gas with no pollution to environment.

    50ton 80ton New Fully Continuous Waste Tire Pyrolysis Plant Production Line for Making Fuel Oil50ton 80ton New Fully Continuous Waste Tire Pyrolysis Plant Production Line for Making Fuel Oil

    50ton 80ton New Fully Continuous Waste Tire Pyrolysis Plant Production Line for Making Fuel Oil
