| Place of Origin: | China |
| Brand Name: | HNJZ |
| Certification: | CE |
| Model Number: | JZ-10 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 40000-50000 Set |
| Packaging Details: | naked package |
| Delivery Time: | 28 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Set/Sets per Year |
| Product: | Waste Tire Pyrolysis Recycling Plant | Raw Material:: | Waste Tyre, Used Tire, Scrap Tire |
|---|---|---|---|
| End Product: | Fuel Oil Steel Carbon Back | Function: | Make Oil |
| Machine Type: | Semi-automatically | Application: | Recycle Waste Tires To Oil |
| Fuel Material: | Coal,wood,gas,oil | Operator Required: | 3-4 Person |
| Capacity: | 10ton/day,10tpd |

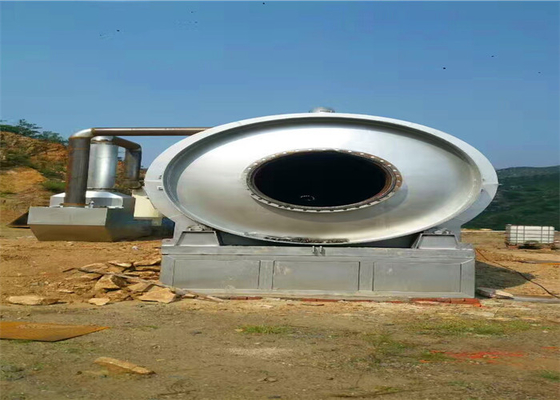

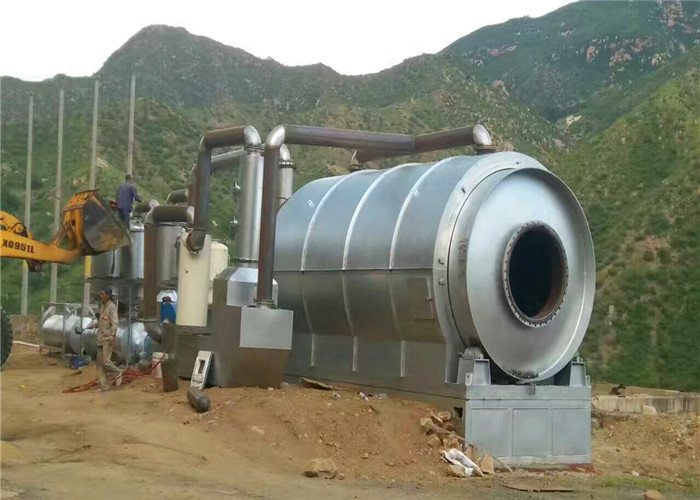

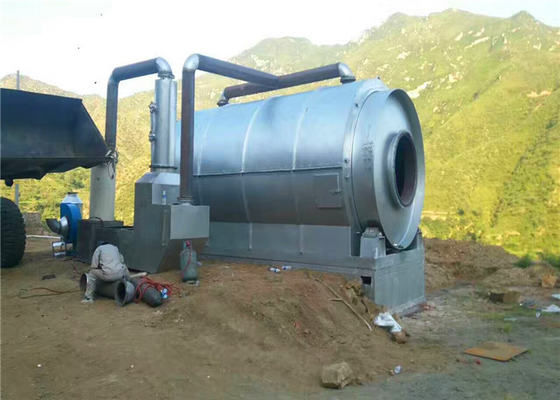

Waste Plastic Used Tyre Rubbers Pyrolysis to Fuel Oil Plant is used to recycle waste tyre to fuel oil. Compared with landfill and burning, The waste tyre pyrolysis plant is a green technology and a better way for waste management.
The raw materials can be used tires, waste plastic, scrap rubber which can be easily found from rubbish collecting station. The cost of raw materials is low, even you can get subsidy by solving pollution caused by garbage in many countries. Mean-while the fuel oil has a good market in industry field.
1. The Raw Material For Pyrolysis Machine
| 1 | Waste tyre | Steel tyre ,Nylon tyre ,Bick tyre |
| 2 | Waste plastic | PE,PVC,Waste washed mixture plastic from waste Paper Factory |
| 3 | Waste rubber | Shoes Soles,Cable Skin |
| 4 | oil sludge,waste oil sludge |
2. Pyrolysis plant models and specification
| No. | Item | Contents |
| 1 | Pyrolysis Plant Daily Capcity | 5T/8T/10T/12T/15T |
| 2 | Reactor Size | 2200*6000mm/2800*6000 |
| 3 | Reactor Material | Q345R |
| 4 | Reactor Thickness | 16mm |
| 5 | Total Weight | 25-35T |
| 6 | Running Time | 20-24h |
| 7 | Operating Power | 20KW |
| 8 | Space Needed | About 300 square meters |
| 9 | Labour Needed | 3-4 persons |
| 10 | Raw Material | Waste tire,plastic,rubber,etc |
| 11 | Heating Fuel | Coal,wood,fuel oil,gas,charcoal |
| 12 | Output Product | Fuel oil, carbon black,(steel wire) |
3.The available fuel for pyrolysis processing
| NO. | Fuel |
| 1 | Oil(fuel oil, tyre oil, heavy oil etc..) |
| 2 | Natural gas |
| 3 | Coal |
| 4 | Firewood |
| 5 | Carbon black pellet |
4. End product percentage and useage( Example : raw material is tyre)
| NO. | Name | Percentage | Usage |
| 1 | Tyre oil | 45% |
* can be sold directly. * make diesel and gasoline by use oil distillation machine. * can be as fuel. |
| 2 | Carbon black | 30% |
* can be sold directly. * make fine carbon by use carbon black refining machine. * make pellet by use carbon make pellet machine. |
| 3 | Steel wire | 15% |
* can be sold directly. * make steel bloom by use hydraulic press-packing |
| 4 | Oil gas | 10% |
* can be as fuel burn by use gas burn system (pyrolysis machine included) *extra gas also be storage as fuel for other heating. |
5. Pyrolysis machine advantage and main technical characteristics
1. High oil output rate 45%--55% with special catalyst formula and high tech .
2. Rapid condensers and large cooling area,assure you get much more and higher quality oil.
diversiform cooling system can be choose according to client's willingness
3. Dust-removing device -four levels dust processing system make sure no any population and the
output smoking is the spray .more environmental protection.
4. Double tail-gas recycling and burning system, saving energy.
5. Q245R boiler plate, high temperature resistance, thickness reaches 14mm—16mm,guarantee
4-7 years service lives. and optional plate is Q345R
6. OptionalAuto feeder and carbon black discharge elevator, high automation, saving time and labors.
7. Eco-friendly and no any population, environmental protection
6. Machine 3D drawing flow chart and working processing
