Waste Tyre Plastic Rubber Pyrolysis Plant Converting to Fuel Oil carbon black and steel

Waste Tyre Plastic Rubber Pyrolysis Plant Converting to Fuel Oil carbon black and steel

    • Waste Tyre Plastic Rubber Pyrolysis Plant Converting to Fuel Oil carbon black and steel
    • Waste Tyre Plastic Rubber Pyrolysis Plant Converting to Fuel Oil carbon black and steel
    • Waste Tyre Plastic Rubber Pyrolysis Plant Converting to Fuel Oil carbon black and steel
    • Waste Tyre Plastic Rubber Pyrolysis Plant Converting to Fuel Oil carbon black and steel
    • Waste Tyre Plastic Rubber Pyrolysis Plant Converting to Fuel Oil carbon black and steel
  • Waste Tyre Plastic Rubber Pyrolysis Plant Converting to Fuel Oil carbon black and steel

    Product Details:

    Place of Origin: China
    Brand Name: Jinzhen Machine
    Certification: CE
    Model Number: JZ-10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD 30000-50000 Set
    Packaging Details: Qingdao port
    Delivery Time: 15-20 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100 Set/Sets per Month waste tyre pyrolysis machine
    Contact Now
    Detailed Product Description
    Tire Machine Type: Waste Tire Pyrolysis Plant Raw Material: Waste Tires Waste Rubber Waste Plastics
    Application: Scrap Tyre Recycling To Oil Machine Waste Tyre Pyrolysis Plant: 10 Tons Per Day
    Fuel: Wood Coal Oil Natural Gas Material Of Reactor: Q245R
    Oil Yield: 45% Reactor Thickness: 14mm
    After Warranty Service: Video Technical Support Final Product: Teel Wires, Fuel Oil, Carbon Black And Sync Gas

    Waste Tyre Plastic Rubber Pyrolysis Plant Converting to Fuel Oil carbon black and steel



    End product percentage and useage( Example : raw material is tyre)

    NO. Name Percentage Usage
    1 Tyre oil 45%

    * can be sold directly.

    * make diesel and gasoline by use oil distillation machine.

    * can be as fuel.

    2 Carbon black 30%

    * can be sold directly.

    * make fine carbon by use carbon black refining machine.

    * make pellet by use carbon make pellet machine.

    3 Steel wire 15%

    * can be sold directly.

    * make steel bloom by use hydraulic press-packing

    4 Oil gas 10%

    * can be as fuel burn by use gas burn system

    (pyrolysis machine included)

    *extra gas also be storage as fuel for other heating.

    Waste Tyre Plastic Rubber Pyrolysis Plant Converting to Fuel Oil carbon black and steel

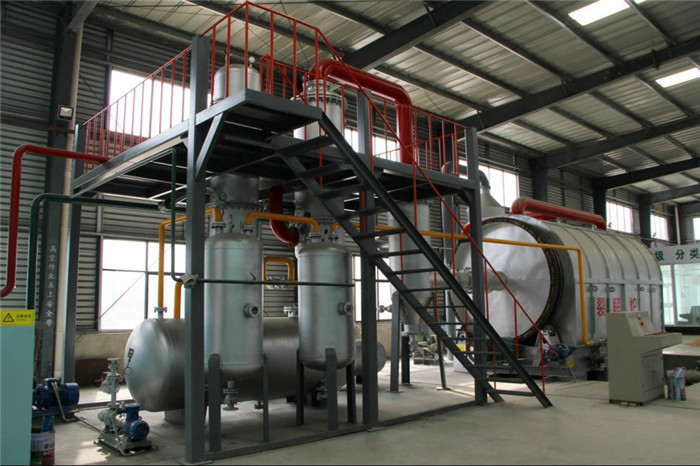

    Main Parts of Pyrolysis Plant

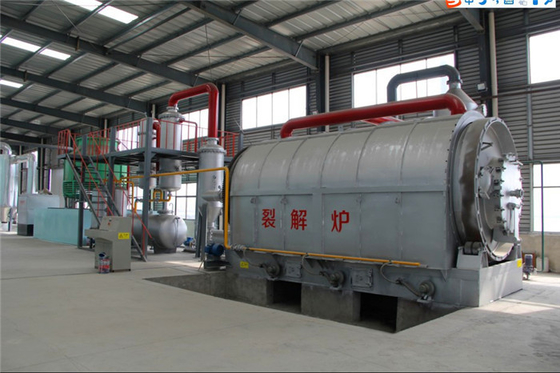

    Reactor

    Burning Room

    Gas Separator

    Condensers

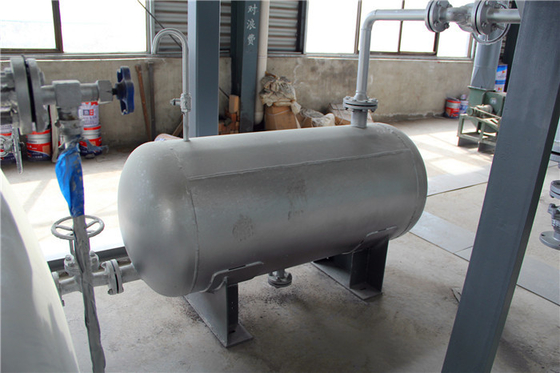

    Oil Tank

    Cooling Tower

    Sync Gas Recycling System

    Waste Gas Burner

    Smoke Scrubbers

    Carbon Black Discharging System



    Work Process

    1. Put raw materials into reactor by auto-feeder, then heat the reactor. Do not stop heating the reactor, when the temperature reaches nearly 250 degree Celsius, waste tyre will be transferred to oil gas.

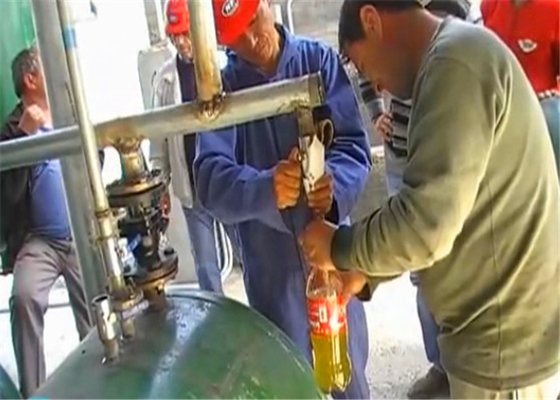

    2. The liquid oil will be cooled by condenser from oil gas and then collected by oil tank.
    3. The exhaust gas which can not be cooled in normal pressure will be recycled to heat the reactor. Smoke produced by processing the tyres can achieve national emission standard through dual desulfurization and dusting removal device.
    4. After you get oil, the temperature will be low, at this time, carbon black will be discharged automatically.



    Factory required

    Working Power 15-30KW ( Varies by Design and Capacity)
    Area Cover 300 square meters (L*W*H= 30M*10M*7M)
    Labor need 2-4 persons( Varies by Configurations)
    Processing Time

    Loading 2 hours, Processing 8-9 hours, Discharge carbon and steel 1.5 hour

    (Take 12 tons/day as sample)

    Applicable Material

    Waste tyre, Waste Rubber, Waste Plastic, all kinds of oil sludge, waste aluminiu,

    foil, electric cable, Waste Leather Offcut, Waste Acrylic(PMMA), etc...

    Heating fuel Pyrolysis Oil, Natural Gas, Electric , Coal, Firewood .



    Characteristics of waste tyre pyrolysis plant

    1. Full open door design: Speedy loading in and steel pulling out; Easily cooling down after one batch finished, saving time; No leaking with special high temperature flexible graphite packing.

    2. Unique Craft Condensers: High condensing efficiency with more oil output. Good quality oil, longer lifetime, and easy to clean.

    3. National Patent Unique Smoke Scrubbers: More efficient removal of the acid gas and dust of the smoke by neutralization, purification and absorption, environmental friendly without pollution.

    4. National Patent Carbon Black Discharging System: Speedy fully enclosed Auto-discharging under high temperature, avoiding carbon black pollution, saving time.

    5. Automatic Submerged welding technology, ultrasonic nondestructive testing, both manual and the automatic safety devices.

    6. Sync Gas Recycling System: Fully burned after recycling and utilization, saving fuel and preventing pollution.

    7. Direct Heating System: Enlarging heating square to lengthen the lifespan of the reactor and easy to control the temperature.

    8. National Patent, unique heat insulation shell; high efficiency temperature keeping, excellent energy-saving effect.



    Safety system:

    1. Auto welding to improve working efficient, ensure machine quality, avoid accident.
    2. Special design to avoid the jam with X-ray test, ensure safety running.
    3. Vacuum system ensures the whole line working well.


    Environmental protection:
    1. Dust and sulfur removal system remove smoke and sulfur.
    2. The exhaust gas (include methane to butane) will be directly recycled to furnace for fuel, no gas pollution.



    High oil yield:
    1. Three cooling processes ensure the oil gas liquefied sufficiently.
    2. Catalyst chamber ensure the raw material pyrolysis totally.

    Waste Tyre Plastic Rubber Pyrolysis Plant Converting to Fuel Oil carbon black and steelWaste Tyre Plastic Rubber Pyrolysis Plant Converting to Fuel Oil carbon black and steelWaste Tyre Plastic Rubber Pyrolysis Plant Converting to Fuel Oil carbon black and steel

    Waste Tyre Plastic Rubber Pyrolysis Plant Converting to Fuel Oil carbon black and steel

    Waste Tyre Plastic Rubber Pyrolysis Plant Converting to Fuel Oil carbon black and steel
