High Oil Yield Waste Tyre Pyrolysis Plant To Fuel Oil Carbon Black And Steel Wires

High Oil Yield Waste Tyre Pyrolysis Plant To Fuel Oil Carbon Black And Steel Wires

    • High Oil Yield Waste Tyre Pyrolysis Plant To Fuel Oil Carbon Black And Steel Wires
    • High Oil Yield Waste Tyre Pyrolysis Plant To Fuel Oil Carbon Black And Steel Wires
    • High Oil Yield Waste Tyre Pyrolysis Plant To Fuel Oil Carbon Black And Steel Wires
    • High Oil Yield Waste Tyre Pyrolysis Plant To Fuel Oil Carbon Black And Steel Wires
  • High Oil Yield Waste Tyre Pyrolysis Plant To Fuel Oil Carbon Black And Steel Wires

    Product Details:

    Place of Origin: China
    Brand Name: Jinzhen Machine
    Certification: CE
    Model Number: JZ-6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD 30000-50000 Set
    Packaging Details: Qingdao port
    Delivery Time: 15-20 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100 Set/Sets per Month waste tyre pyrolysis machine
    Contact Now
    Detailed Product Description
    Tire Machine Type: Waste Tire Pyrolysis Plant Raw Material: Waste Tires Waste Rubber Waste Plastics
    Application: Scrap Tyre Recycling To Oil Machine Waste Tyre Pyrolysis Plant: 6 Tons Per Day
    Fuel: Wood Coal Oil Natural Gas Material Of Reactor: Q245R
    Oil Yield: 45% Reactor Thickness: 14mm
    After Warranty Service: Video Technical Support Final Product: Teel Wires, Fuel Oil, Carbon Black And Sync Gas

    High oil yield waste tyre pyrolysis plant to fuel oil carbon black and steel wires

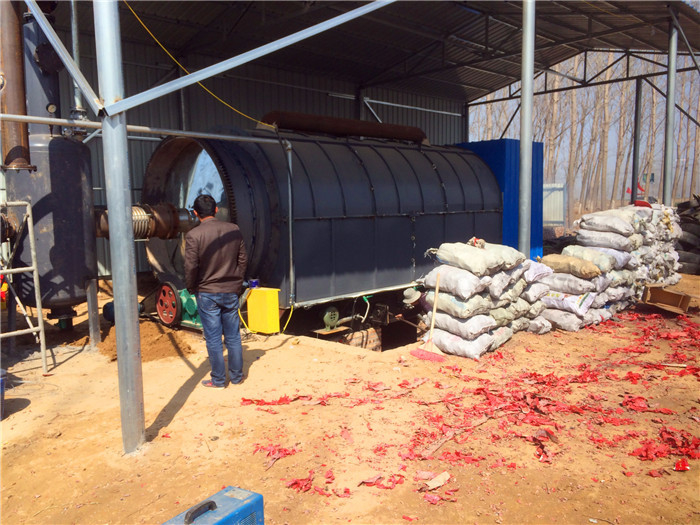

    Waste tyre Pyrolysis Plant is applied for recycling waste tire, waste plastic, waste rubber to fuel oil. According to the actual situation in every country and district, we developed different models of Batch Pyrolysis Plants for waste tires, rubber and plastic with daily capacity 5 -10 tons.



    High Oil Yield Waste Tyre Pyrolysis Plant To Fuel Oil Carbon Black And Steel Wires
    Raw Materials and Final Products and Its Usage.

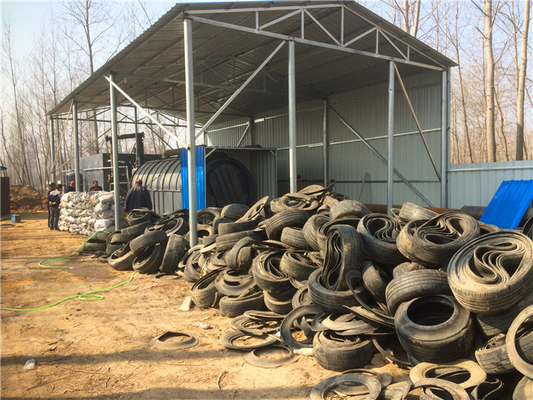

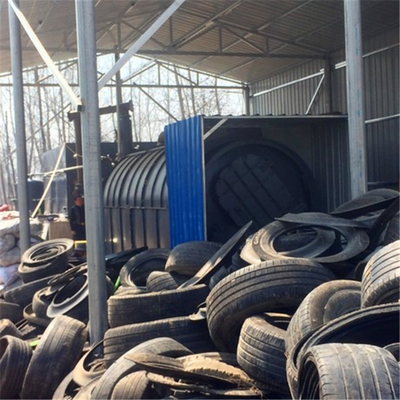

    Raw materials: Waste tyres, waste rubber and waste plastics, etc.

    Final products: Steel wires, fuel oil, carbon black and sync gas...

    The usage of the final products:

    Steel wires: 12%-15% from tyres, to be sold or reprocessed

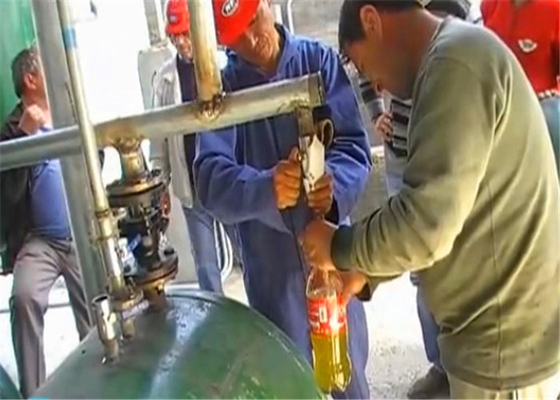

    Fuel oil: Widely used in industries such as steel and iron factories, ceramics or chemical industries or hotels, restaurants etc. as fuel oil, or used for heavy oil generators to get electricity.
    Carbon black: Crude carbon black can be used for construction bricks, or widely used as industrial carbon black N774, N660, N330 or color carbon after deep-process.



    Technological Process

    1.Tyre transported to reactor to pyrolyze.

    2.Oil and gas from pyrolysis go into gas-liquid separating tower and separate, and enter into condenser to liquify , to get fuel oil, then enter into oil storage tank.

    3.Coarse carbon black and steel wire from pyrolysis are output by automatic slag remover, transported to carbon black processing system by cooling hoist. Separate steel wire and carbon black through the magnetic separator,to get industrial carbon black and steel wire.

    4. Steel wire pulled out by winch, compressed into pieces, and do steel scrap process.

    5. Flammable gas enter into waste gas tank and processed. Then extracted by vacuum pump, enter into water sealed tank and send to hot air furnace to burn.



    Factory required

    Working Power 15-30KW ( Varies by Design and Capacity)
    Area Cover 300 square meters (L*W*H= 30M*10M*7M)
    Labor need 2-4 persons( Varies by Configurations)
    Processing Time

    Loading 2 hours, Processing 8-9 hours, Discharge carbon and steel 1.5 hour

    (Take 12 tons/day as sample)

    Applicable Material

    Waste tyre, Waste Rubber, Waste Plastic, all kinds of oil sludge, waste aluminiu,

    foil, electric cable, Waste Leather Offcut, Waste Acrylic(PMMA), etc...

    Heating fuel Pyrolysis Oil, Natural Gas, Electric , Coal, Firewood .



    Characteristics of waste tyre pyrolysis plant

    1. High oil output rate 45%--55% with special catalyst formula and high tech.

    2. Rapid condensers and large cooling area,assure you get much more and higher quality oil. diversiform cooling system (condensers or pipe pond) can be choose according to client's willingnes.

    3. Dust-removing device -four levels dust processing system make sure no any population and the output smoking is the spray .more environmental protection. no-pollution.

    4. Double tail-gas recycling and burning system, saving energy.

    5. Q245R boiler plate, high temperature resistance, thickness reaches 14mm,guarantee 4-7 years service lives. and optional plate is Q245R.



    Main Parts of Pyrolysis Plant

    Reactor

    Burning Room

    Gas Separator

    Condensers

    Oil Tank

    Cooling Tower

    Sync Gas Recycling System

    Waste Gas Burner

    Smoke Scrubbers

    Carbon Black Discharging System

    Safety system:

    1. Auto welding to improve working efficient, ensure machine quality, avoid accident.
    2. Special design to avoid the jam with X-ray test, ensure safety running.
    3. Vacuum system ensures the whole line working well.


    Environmental protection:
    1. Dust and sulfur removal system remove smoke and sulfur.
    2. The exhaust gas (include methane to butane) will be directly recycled to furnace for fuel, no gas pollution.



    High oil yield:
    1. Three cooling processes ensure the oil gas liquefied sufficiently.
    2. Catalyst chamber ensure the raw material pyrolysis totally.

    High Oil Yield Waste Tyre Pyrolysis Plant To Fuel Oil Carbon Black And Steel WiresHigh Oil Yield Waste Tyre Pyrolysis Plant To Fuel Oil Carbon Black And Steel WiresHigh Oil Yield Waste Tyre Pyrolysis Plant To Fuel Oil Carbon Black And Steel Wires

    High Oil Yield Waste Tyre Pyrolysis Plant To Fuel Oil Carbon Black And Steel Wires

    High Oil Yield Waste Tyre Pyrolysis Plant To Fuel Oil Carbon Black And Steel Wires
