Environment friendly scrap tyre rubber to fuel oil pyrolysis plant Waste Tire Pyrolysis Recycling Plant

Environment friendly scrap tyre rubber to fuel oil pyrolysis plant Waste Tire Pyrolysis Recycling Plant

    • Environment friendly scrap tyre rubber to fuel oil pyrolysis plant Waste Tire Pyrolysis Recycling Plant
    • Environment friendly scrap tyre rubber to fuel oil pyrolysis plant Waste Tire Pyrolysis Recycling Plant
    • Environment friendly scrap tyre rubber to fuel oil pyrolysis plant Waste Tire Pyrolysis Recycling Plant
    • Environment friendly scrap tyre rubber to fuel oil pyrolysis plant Waste Tire Pyrolysis Recycling Plant
  • Environment friendly scrap tyre rubber to fuel oil pyrolysis plant Waste Tire Pyrolysis Recycling Plant

    Product Details:

    Place of Origin: China
    Brand Name: Jinzhen Machine
    Certification: IS9000
    Model Number: JZ-10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: USD 30000-50000 Per Set
    Packaging Details: Nude packing for the reactor , wooden box for small parts
    Delivery Time: 15 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100 sets per month
    Contact Now
    Detailed Product Description
    Raw Material:: Waste Tyre Waste Plastic Machine Type:: Waste Tire Pyrolysis Plant
    End Product:: Fuel Oil Steel Carbon Back Function: Automatic
    Capacity: 5-30 TON/DAY Operating Pressure:: Negative Pressure Tyre Pyrolysis Oil
    Fuel: Coal .wood.gas.electric Structure: Horizontal Rotation
    Reactor Material: Q245 Product: Waste Tire Pyrolysis Plant

    Environment friendly scrap tyre rubber to fuel oil pyrolysis plant Waste Tire Pyrolysis Recycling Plant​



    Waste tire/plastic pyrolysis plant is a technique which heats waste tires or plastics in a sealed reactor vessel to be pyrolyzed into oil gas, uncondensable gas and carbon black, for tires, also have steel wire. The oil gas then go through a water circulating cooling system to be cooled down to oil, which is a good heating fuel used in industries. The uncondensable gas is usually recycled to heat the reactor or collected for other heating use. Carbon black could be made into pellets for burning and heating, just like coal, or refining for making new rubber products. Steel wire could be sold to the recycle station or steel mill for remelting.

    Input raw mateiral

    The waste pyrolysis plant can process various kinds of waste plastic including pp , pe , ps , abs , rubber products ,tires to fuel oil , carbon black , steel wire.

    Environment friendly scrap tyre rubber to fuel oil pyrolysis plant Waste Tire Pyrolysis Recycling Plant

    Tyre pyrolysis is: the process of converting waste tyre rubber into industrial fuels like Pyrolysis Oil, Carbon Black and Hydrocarbon Gas.

    Tyre pyrolysis involves subjecting Tyre to high temperature of 400 to 450 degree Celsius, in absence of oxygen. In case of oxygen is present tyre will start burning. During pyrolysis tyre breaks down into smaller molecules of pyrolysis oil, pyrolysis gas and carbon black. Pyrolysis is great a way of recycling waste plastics. This plant can also used for waste plastic recycling.



    Output product from the waste pyrolysis plant



    From waste tire pyrolysis plant, 4 kinds of products can be obtained: fuel oil, catbon black, steel wire, and incondensable gas. Fuel oil is widely used in industries, such as steel factory, heavy oil generator, cement factory, and boiler heating etc. Carbon black can be made into pellets for making new rubber products. Steel wire could be sold to the recycle station or steel mill for remelting. The incondensable gas is recycled to heat the pyrolysis reactor, saving energy.



    Working proccess of the waste plastic pyrolysis plant



    1. Put raw materials into reactor by auto-feeder, then heat the reactor. Do not stop heating the reactor when the temperature reaches nearly 250 degree Celsius, waste tyre will be transferred to oil gas.

    2. The oil gas will be cooled by condenser to liquid oil then collected by oil tank.

    3. The exhaust gas which can not be cooled to liquid oil will be recycled to heat the reactor. Smoke produced during processing can achieve national emission standard through dual desulfurization and dusting removal device.

    4. After oil producing finished , give 3 hours for cooling the reactor,after that carbon black will be discharged automatically.



    Product Name
    Tyre Pyrolysis Machine
    Capacity
    5TPD, 6TPD, 8TPD, 10TPD, 12TPD, 15TPD
    Reactor Material
    Q345R, Alloy Steel, Stainless Steel
    Reactor Thickness
    16.45mm, 18.45mm
    Total Weight
    30-40 tons (Varies by Design and Capacity)
    Working Power
    15-30KW(Varies by Design and Capacity)
    Labor Qty Require
    2-4 Persons for per set machine, more machine, fewer labors
    Processing Time
    Feeding 2 Hours, Processing 8-9 hours, Carbon Black and Steel Wire Discharging 1.5 hours. (Take 12TPD capacity as example)
    Application Material
    Waste Tyre, Waste Rubber, Waste Plastic, Waste Oil Sludge, Waste Aluminum Foil, Waste Cable, Waste Leather, Waste Acrylic(PMMA),etc...
    Heating Fuel
    Pyrolysis Oil, Natural Gas, Electricity, Coal, Firewood, etc...

    Main Features of tyre recycling plant



    Safety



    1. With an auto welding machine for the reactor, it can not only greatly improve working efficiency of pyrolysis plant, but also guarantee the quality of welding seam, thus avoid explosion caused by gas leak.



    2. Professional heating treatment and x-ray detection chamber are especially for welding.



    3. Professional thermometer, pressure gauge and safety valve.



    Long service Life



    1. Material: Q245R or Q345 Boiler Steel Plate, thickness 16mm.



    2. Welding: Automatic welding machine with heating treatment and x-ray detection will prolong the service life of

    reactor to the max.





    Energy Saving



    1. Well sealing for heating system, no gas leak and saving fuel.



    2. The exhaust gas will be recycled for reactor heating.



    Environmental Friendly



    1. Well water de-dusting system can avoid black smoke.



    2. The exhaust gas will be recycled for heating reactor, no gas pollution



    3. Every junction of the tyre recycling machine reactor is in good sealing situation with professional sealing material.

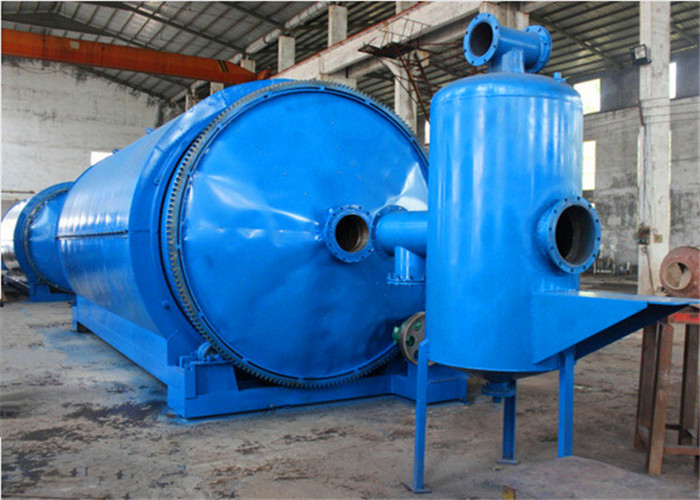

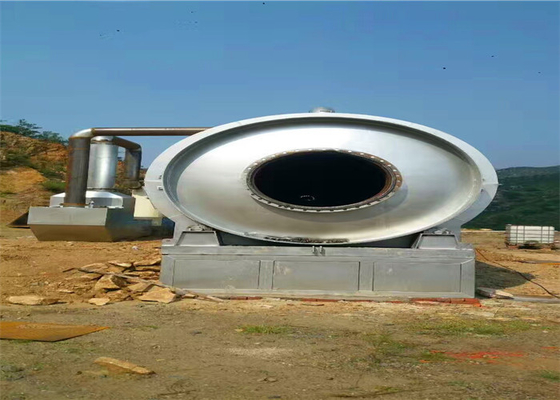

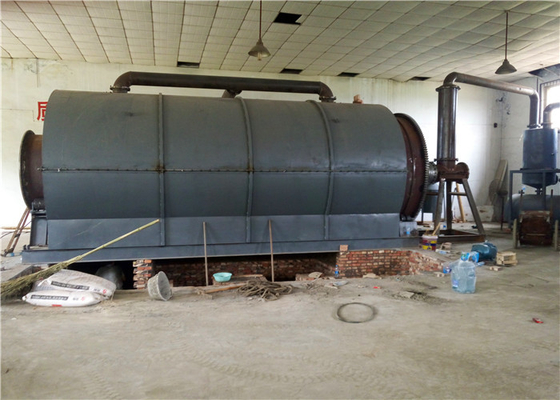

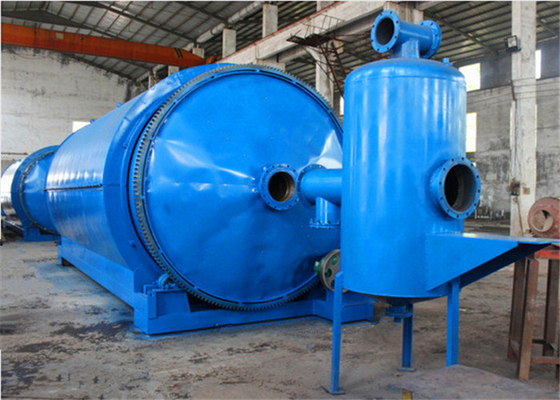

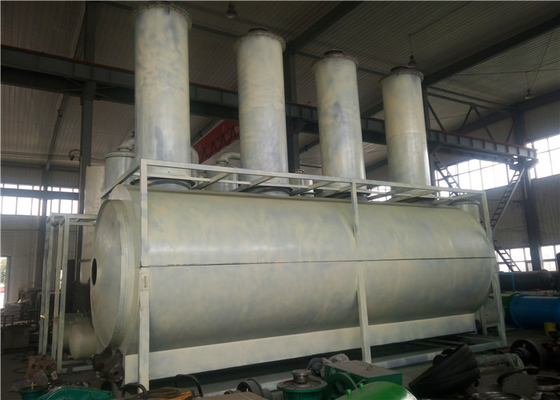

    Detail images

    Environment friendly scrap tyre rubber to fuel oil pyrolysis plant Waste Tire Pyrolysis Recycling Plant

    Environment friendly scrap tyre rubber to fuel oil pyrolysis plant Waste Tire Pyrolysis Recycling PlantEnvironment friendly scrap tyre rubber to fuel oil pyrolysis plant Waste Tire Pyrolysis Recycling PlantEnvironment friendly scrap tyre rubber to fuel oil pyrolysis plant Waste Tire Pyrolysis Recycling Plant
