Fully Continuous Waste Tyre Plastic Recycling To Fuel Oil Pyrolysis Plant

Fully Continuous Waste Tyre Plastic Recycling To Fuel Oil Pyrolysis Plant

    • Fully Continuous Waste Tyre Plastic Recycling To Fuel Oil Pyrolysis Plant
    • Fully Continuous Waste Tyre Plastic Recycling To Fuel Oil Pyrolysis Plant
    • Fully Continuous Waste Tyre Plastic Recycling To Fuel Oil Pyrolysis Plant
    • Fully Continuous Waste Tyre Plastic Recycling To Fuel Oil Pyrolysis Plant
    • Fully Continuous Waste Tyre Plastic Recycling To Fuel Oil Pyrolysis Plant
  • Fully Continuous Waste Tyre Plastic Recycling To Fuel Oil Pyrolysis Plant

    Product Details:

    Place of Origin: China
    Brand Name: Jinzhen Machine
    Certification: CE
    Model Number: JZ-10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set of waste tyre pyrolysis machine
    Price: 35000 USD Per Set
    Packaging Details: plywood packing
    Delivery Time: 5-8 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100 pcs per month
    Contact Now
    Detailed Product Description
    Capacity: 5-15tons Raw Material: Waste Tyre Rubber Plastic
    Final Product: Fuel Oil Steel Carbon Back Cooling Method: Water Recycling Cooling
    Heating Fuel: Coal Wood Pyrolysis Oil Machine Type: Batch Working
    Reactor Thickness: 14MM/16MM Work Pressure: Normal Pressure
    Material Of Reactor: Q245R/Q345R Boiler Steel

    Fully Continuous Waste Tyre Plastic Recycling To Fuel Oil Pyrolysis Plant ​



    Waste tire/plastic pyrolysis plant for fuel oil is a new type of tyre oil treatment machine researched by our company through many times of experiment combined with the actual situation. The whole treating process is going under low temperature. It can effectively remove the tiny particles and Colloidal matter in the tyre oil, and meanwhile it can remove the odour of the oil, and finally makes the oil color looks clean and transparent and improve the economic value. It features high recycling rate, low costs of energy consumption, good oil processing ability. It is suitable for purification of tyre pyrolysis oil.

    1. The Raw Material For Pyrolysis Machine

    Input raw material : waste tyre ,rubber , plastic , pp, pe , ps , abs etc.Output product : Pyrolysis oil , carbon black , and steel wire , syngas.
    Capacity : 10kg , 750kg , 4ton , 5ton , 10ton , 15ton, 30ton , 50ton. support customization.

    Fully Continuous Waste Tyre Plastic Recycling To Fuel Oil Pyrolysis Plant

    NO. Raw material Note
    1 Waste tyre Steel tyre ,Nylon tyre ,Bick tyre
    2 Waste plastic PE,PVC,Waste washed mixture plastic from waste Paper Factory,PMMA
    3 Waste rubber Shoes Soles,Cable Skin
      Municiple Solid Waste City household garbage recycling
    4 waste oil sludge



    2. Pyrolysis plant specification

    Unit capacity
    5-15tons
    Production mode
    Batch type
    Overall Dimension
    35M*12M*8M
    Total Weight
    30-45Tons
    Internal Volume of Reactor
    22.8-49.85CBM
    Condensing System
    Horizontal condenser & Square box condenser
    Emission Control System
    Water film scrubber & Stainless steel scrubber plus internal filters
    Heating system
    Oil burners and gas burners
    Feeding System
    Hydraulic feeder
    Discharging System
    Side discharging : U -shape screw conveyor

    3.The available fuel for pyrolysis processing

    NO. Fuel
    1 Oil(fuel oil, tyre oil, heavy oil etc..)
    2 Natural gas
    3 Coal
    4 Firewood
    5 Carbon black pelle

    4. End product percentage and useage( Example : raw material is tyre)

    Fully Continuous Waste Tyre Plastic Recycling To Fuel Oil Pyrolysis Plant



    Output Products
    Application
    Fuel Oil
    (40%-55%)
    1. Used as the heating material and sell it to cement factories, glass factories, ceramic factories, electric power factories,
    steel making factories, boiler factories, etc.
    2. Used in heavy oil generator for electricity generation.
    3. Deep process it into diesel oil with our distillation plant, color, and smell removal system, the final oil can be used in
    trucks, tractors, etc.
    Carbon Black(30%-35%)
    Make it to pellet or briquette as heating material.
    Steel Wire (10%-15%)
    It's easy to sell to scrap metal dealers.
    Flammable Gas (8%-10%)
    1. Recycled into the furnace to heat reactor instead of coal/wood/oil/natural gas.
    2. Storage the exceed gas to restart the next batch.


    5. advantage and main technical characteristics of Pyrolysis machine

    1.The material of the reactor is Q345R/Q245R boiler plate with 16/18mm thickness. The rollers are engineered underfeeding port and oil outlet port which are external to the heating area to bring perfect rotating balance and longer service life.
    2. Two devices to avoid backfire in production: oil-water separator and anti-back fire device.
    3. Vacuum device makes the reactor work under ordinary pressure or negative pressure.
    4. Temperature monitoring and Pressure gauge to monitor the pressure. If the pressure goes above a certain level, the bell will alarm and the safety valve will release the pressure automatically.
    5. The flue gas (caused by burning fuel to heat the reactor) will be purified and cooled by a powerful ceramic packing dust removal device, then can be released into the air through the chimney.
    6. Carbon black will be discharged out in sealed condition to avoid pollution.

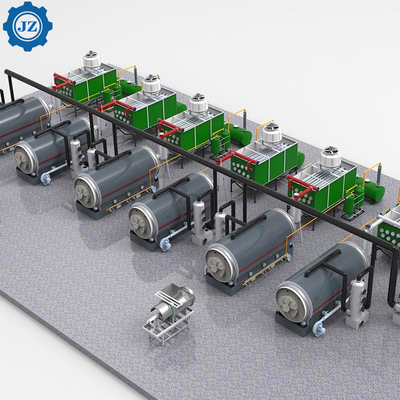

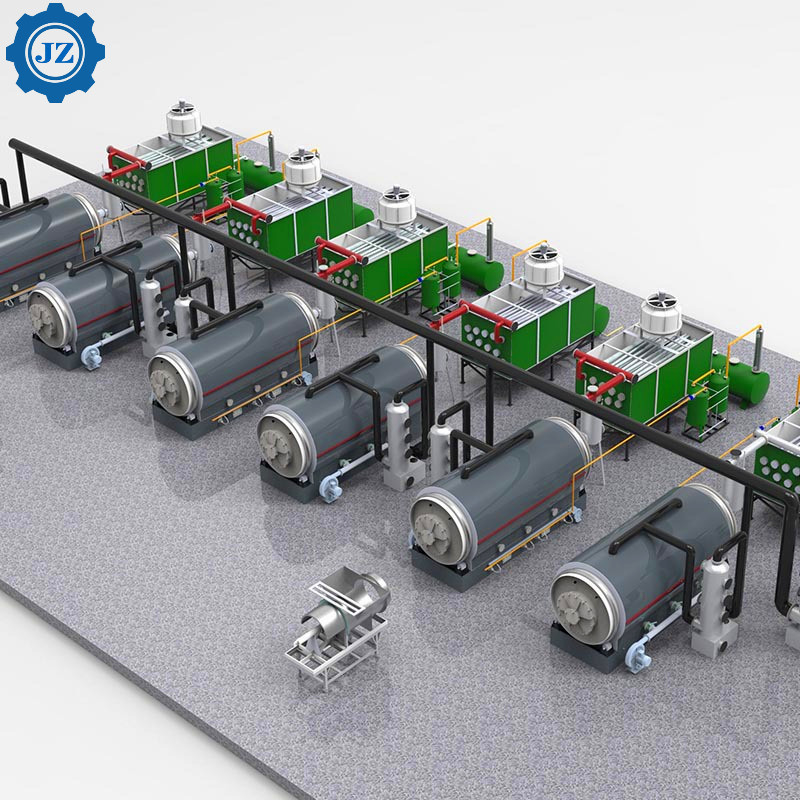

    6.Machine 3D drawing flow chart and working processing

    Fully Continuous Waste Tyre Plastic Recycling To Fuel Oil Pyrolysis Plant



    Operation process of waste plastic pyrolysis plant
    1. Loading the waste material into the pyrolysis reactor manually or with auto feeder.
    2. Heating the pyrolysis reactor and producing oil.
    3. The exhaust gas which can not be cooled to liquid oil will be recycled to heat the reactor. Smoke will be purified through strong and powerful dust removal device.
    4. Cool the pyrolysis reactor after oil production is finished.
    5. Discharging carbon black and steel wire.

    1.The size for the equipment :
    Device itself covers an area of 300 square meters (25 meters long / 12 m wide), and covers an area of raw materials, end products piled up, simply rest area, office area and workers need about 600-800 square meters.
    2.Operation personnel quantity:
    Artificial feeding: need 3-4 workers
    3.Quarantee:
    Overall quality assurance two years (except wearing parts under normal operation, free maintenance), life-long maintenance. Host the Q245R boiler steel plate, can bear high temperature 700 ℃.

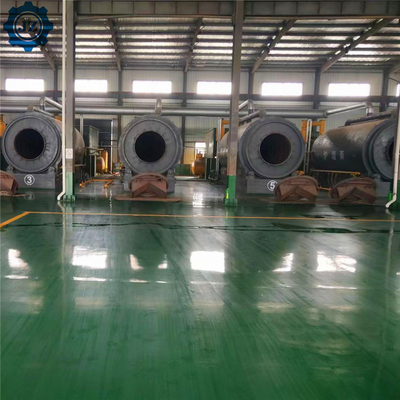

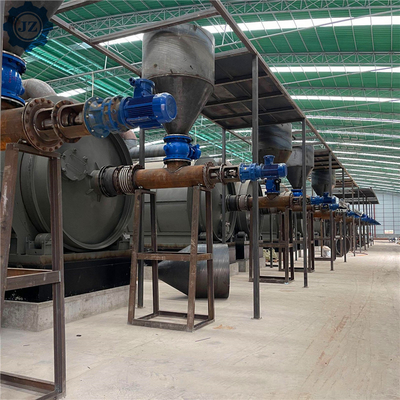

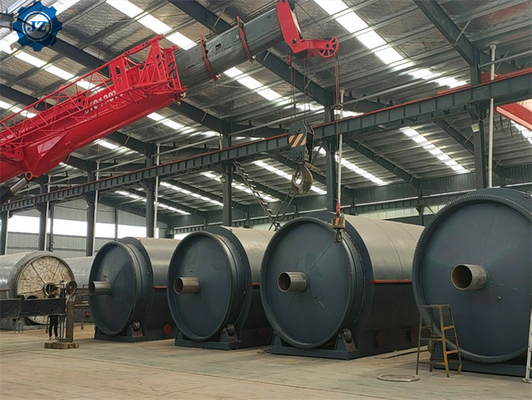

    7.Picture Of Waste Tyre Pyrolysis Machine

    Fully Continuous Waste Tyre Plastic Recycling To Fuel Oil Pyrolysis Plant

    Fully Continuous Waste Tyre Plastic Recycling To Fuel Oil Pyrolysis PlantFully Continuous Waste Tyre Plastic Recycling To Fuel Oil Pyrolysis Plant

    Fully Continuous Waste Tyre Plastic Recycling To Fuel Oil Pyrolysis Plant
