| Place of Origin: | China |
| Brand Name: | Jinzhen Machine |
| Certification: | CE |
| Model Number: | JZ-10 |
| Minimum Order Quantity: | 1 set of waste tyre pyrolysis machine |
|---|---|
| Price: | 35000 USD Per Set |
| Packaging Details: | plywood packing |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 pcs per month |
| Capacity: | 5-15tons | Raw Material: | Waste Tyre Rubber Plastic |
|---|---|---|---|
| Final Product: | Fuel Oil Steel Carbon Back | Cooling Method: | Water Recycling Cooling |
| Heating Fuel: | Coal Wood Pyrolysis Oil | Machine Type: | Batch Working |
| Reactor Thickness: | 14MM/16MM | Work Pressure: | Normal Pressure |
| Material Of Reactor: | Q245R/Q345R Boiler Steel |
Huge Profit Waste Tire Tyre Plastic Recycling Production Line To Fuel Oil
Pyrolysis machine, also called pyrolysis plant/pyrolysis unit/pyrolysis device, is a popular recycling machine that can recycle and convert solid&hazardous waste like tires, plastic, oil sludge, coal tar oil, aluminum plastic composite materials, etc. into valuable products namely oil, syn-gas and char(carbon black), ingot, etc.
1. The Raw Material For Pyrolysis Machine
| NO. | Raw material | Note |
| 1 | Waste tyre | Steel tyre ,Nylon tyre ,Bick tyre |
| 2 | Waste plastic | PE,PVC,Waste washed mixture plastic from waste Paper Factory,PMMA |
| 3 | Waste rubber | Shoes Soles,Cable Skin |
| Municiple Solid Waste | City household garbage recycling | |
| 4 | waste oil sludge |
2. Pyrolysis plant specification
3.The available fuel for pyrolysis processing
| NO. | Fuel |
| 1 | Oil(fuel oil, tyre oil, heavy oil etc..) |
| 2 | Natural gas |
| 3 | Coal |
| 4 | Firewood |
| 5 | Carbon black pelle |
4. End product percentage and useage( Example : raw material is tyre)
| NO. | Name | Percentage | Usage |
| 1 | Pyrolysis oil | 40%-45% |
* can be sold directly. * make diesel and gasoline by use oil distillation machine. * can be as fuel. |
| 2 | Carbon black | 30% |
* can be sold directly. * make fine carbon by use carbon black refining machine. * make pellet by use carbon make pellet machine. |
| 3 | Steel wire | 15% |
* can be sold directly. * make steel bloom by use hydraulic press-packing |
| 4 | Oil gas | 10-15% |
* can be as fuel burn by use gas burn system (pyrolysis machine included) *extra gas also be storage as fuel for other heating. |
5. advantage and main technical characteristics of Pyrolysis machine
1. High oil output rate 45%--55% with special catalyst formula and high tech.
2. Rapid condensers and large cooling area,assure you get much more and higher quality oil. diversiform cooling system (condensers or pipe pond) can be choose according to client's willingnes.
3. Dust-removing device -four levels dust processing system make sure no any population and the output smoking is the spray .more environmental protection. no-pollution.
4. Double tail-gas recycling and burning system, saving energy.
5. Q245R boiler plate, high temperature resistance, thickness reaches 16mm,guarantee
4-7 years service lives. and optional plate is Q345R.
6.Machine 3D drawing flow chart and working processing
Operation process of waste plastic pyrolysis plant
1. Loading the waste material into the pyrolysis reactor manually or with auto feeder.
2. Heating the pyrolysis reactor and producing oil.
3. The exhaust gas which can not be cooled to liquid oil will be recycled to heat the reactor. Smoke will be purified through strong and powerful dust removal device.
4. Cool the pyrolysis reactor after oil production is finished.
5. Discharging carbon black and steel wire.
1.The size for the equipment
Device itself covers an area of 300 square meters (25 meters long / 12 m wide), and covers an area of raw materials, end products piled up, simply rest area, office area and workers need about 600-800 square meters.
2.Operation personnel quantity:
Artificial feeding: need 3-4 workers
3.Quarantee:
Overall quality assurance two years (except wearing parts under normal operation, free maintenance), life-long maintenance. Host the Q245R boiler steel plate, can bear high temperature 700 ℃.

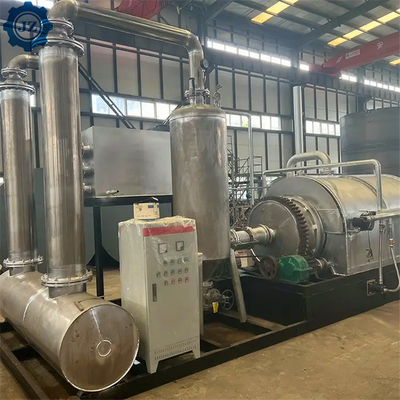

Picture of Waste Tyre Recycling To Oil Pyrolysis Machine
