| Place of Origin: | China |
| Brand Name: | Jinzhen Machine |
| Certification: | CE |
| Model Number: | JZ-10 |
| Minimum Order Quantity: | 1 set of waste tyre pyrolysis machine |
|---|---|
| Price: | 35000 USD Per Set |
| Packaging Details: | plywood packing |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 pcs per month |
| Capacity: | 5-15tons | Raw Material: | Waste Tyre Rubber Plastic |
|---|---|---|---|
| Final Product: | Fuel Oil Steel Carbon Back | Cooling Method: | Water Recycling Cooling |
| Heating Fuel: | Coal Wood Pyrolysis Oil | Machine Type: | Batch Working |
| Reactor Thickness: | 14MM/16MM | Work Pressure: | Normal Pressure |
| Material Of Reactor: | Q245R/Q345R Boiler Steel |
30tpd Waste Tire/Plastic/Oil Sludge Recycling To Energy Oil Pyrolysis Plant
Jinzhen's waste tyre pyrolysis machine can turn many kinds into fuel oil and carbon black, such as waste plastics, waste tyres, waste rubber, medical waste and oil sludge.
1. The Raw Material For Pyrolysis Machine
Input raw material : waste tyre ,rubber , plastic , pp, pe , ps , abs etc.Output product : Pyrolysis oil , carbon black , and steel wire , syngas.
Capacity : 10kg , 750kg , 4ton , 5ton , 10ton , 15ton, 30ton , 50ton. support customization.
| NO. | Raw material | Note |
| 1 | Waste tyre | Steel tyre ,Nylon tyre ,Bick tyre |
| 2 | Waste plastic |
PE,PVC,Waste washed mixture plastic from waste Paper Factory,PMMA |
| 3 | Waste rubber | Shoes Soles,Cable Skin |
| Municiple Solid Waste | City household garbage recycling | |
| 4 | waste oil sludge |
2. Pyrolysis plant specification
3.The available fuel for pyrolysis processing
| NO. | Fuel |
| 1 | Oil(fuel oil, tyre oil, heavy oil etc..) |
| 2 | Natural gas |
| 3 | Coal |
| 4 | Firewood |
| 5 | Carbon black pelle |
4. End product percentage and useage( Example : raw material is tyre)
5. advantage and main technical characteristics of Pyrolysis machine
1.The material of the reactor is Q345R/Q245R boiler plate with 16/18mm thickness. The rollers are engineered underfeeding port and oil outlet port which are external to the heating area to bring perfect rotating balance and longer service life.
2. Two devices to avoid backfire in production: oil-water separator and anti-back fire device.
3. Vacuum device makes the reactor work under ordinary pressure or negative pressure.
4. Temperature monitoring and Pressure gauge to monitor the pressure. If the pressure goes above a certain level, the bell will alarm and the safety valve will release the pressure automatically.
5. The flue gas (caused by burning fuel to heat the reactor) will be purified and cooled by a powerful ceramic packing dust removal device, then can be released into the air through the chimney.
6. Carbon black will be discharged out in sealed condition to avoid pollution.
6.Machine 3D drawing flow chart and working processing
Operation process of waste plastic pyrolysis plant
1. Loading the waste material into the pyrolysis reactor manually or with auto feeder.
2. Heating the pyrolysis reactor and producing oil.
3. The exhaust gas which can not be cooled to liquid oil will be recycled to heat the reactor. Smoke will be purified through strong and powerful dust removal device.
4. Cool the pyrolysis reactor after oil production is finished.
5. Discharging carbon black and steel wire.
1.The size for the equipment :
Device itself covers an area of 300 square meters (25 meters long / 12 m wide), and covers an area of raw materials, end products piled up, simply rest area, office area and workers need about 600-800 square meters.
2.Operation personnel quantity:
Artificial feeding: need 3-4 workers
3.Quarantee:
Overall quality assurance two years (except wearing parts under normal operation, free maintenance), life-long maintenance. Host the Q245R boiler steel plate, can bear high temperature 700 ℃.

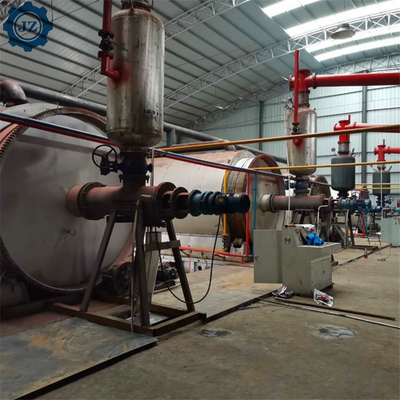

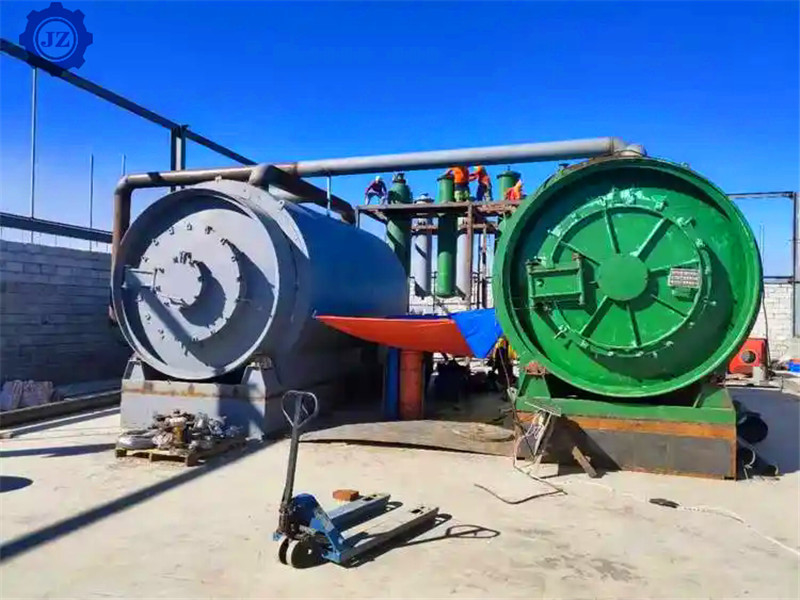

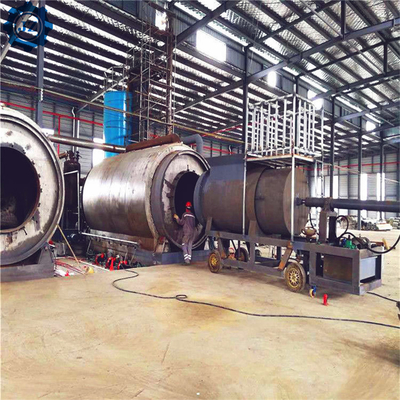

7.Picture Of Waste Tyre Pyrolysis Machine
