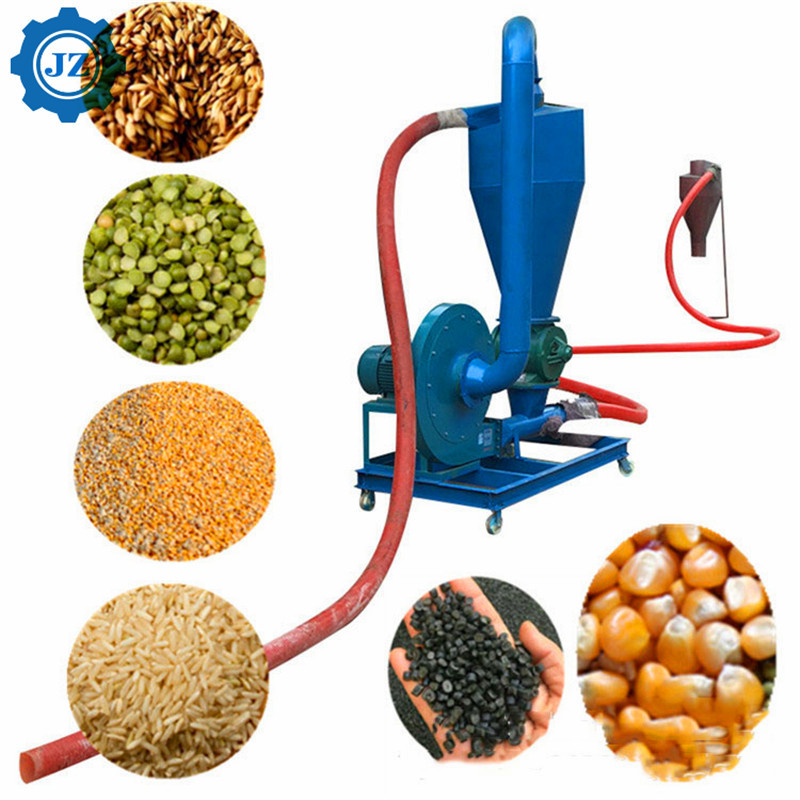

Pneumatic Vacuum Conveyor Automatic Powder Feeder For Food Chemical Powder And Granule

Pneumatic Vacuum Conveyor Automatic Powder Feeder For Food Chemical Powder And Granule

    • Pneumatic Vacuum Conveyor Automatic Powder Feeder For Food Chemical Powder And Granule
    • Pneumatic Vacuum Conveyor Automatic Powder Feeder For Food Chemical Powder And Granule
    • Pneumatic Vacuum Conveyor Automatic Powder Feeder For Food Chemical Powder And Granule
    • Pneumatic Vacuum Conveyor Automatic Powder Feeder For Food Chemical Powder And Granule
  • Pneumatic Vacuum Conveyor Automatic Powder Feeder For Food Chemical Powder And Granule

    Product Details:

    Place of Origin: China
    Brand Name: JZ
    Certification: ISO9001:2008
    Model Number: 10T

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD3000-8000 per set
    Packaging Details: mobile grain pneumatic sucker conveyor truck loading conveyor will be packed in standard wooden case package
    Delivery Time: 5-8 work days
    Payment Terms: T/T, Western Union, L/C
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Structure: Pneumatic Vacuum Conveyor Material: Carbon Steel
    Function: Grain Lifting Sucker Machine | Grain Pneumatic Conveyor Application: Grain Sucker | Mobile Pneumatic Conveyor
    Usage: Grain Suction Machine | Rice Sucking Machine Voltage: 220V/380V
    Covney Distance:: 20-50meter Convey Height/depth:: 5-20meter
    Capacity: 10-30T/H Suitable Material: Rice, Wheat, Corn, Soybean, Sorghum, Barley Malt, Plastic Pellets, Chips, Resins

    Pneumatic Vacuum Conveyor Automatic Powder Feeder For Food Chemical Powder And Granule

    Pneumatic Vacuum Conveyor Automatic Powder Feeder For Food Chemical Powder And Granule

    Pneumatic vacuum conveyor, also called suction grain machine. It is the one kind of advanced material handling machinery, which can handle and unload grain and other bulk particles, such as wheat, rice, peanuts, soybeans, corn, rapeseed, cottonseed, feed, etc., and can also be used for non-food bulk particles, such as Plastic particles, etc.
    At the same time, we can also customize the powder conveyor for the handling of powdery materials, loading and unloading. such as cement, flour and so on

    When conveying grains, it has the effect of removing impurities and dehydrating grains.
    The application scenarios mainly include loading and unloading ships at docks, warehouse entry and exit, and food processing factories.
    At the same time, we can also customize powder conveyors for the handling, loading and unloading of powdered materials. Such as cement, flour, etc

    Working principle of pneumatic grain conveyor

    Pneumatic Vacuum Conveyor Automatic Powder Feeder For Food Chemical Powder And Granule

    Its working principle is negative pressure air stream generated by the high pressure blower though the suction nozzle, suctioning the materials into the hose tube, then materials through the separation tube, air and material separated, material fell off into the air locker downward, then materials will be conveyed to the required place by positive pressure air flow. The air separated will go into the blower through the separator tube or the dust collector.

    The pneumatic conveyor is used to convey many kinds of material such as rice husk, rice, corn, wheat, soyal bean meal, cashew husk, mustard seeds, rapeseed, coffee bean, all kind of beans, agricultural product, cotton seed, fertilizer, plactics resins, cement, fly ash….

    Pneumatic Vacuum Conveyor Automatic Powder Feeder For Food Chemical Powder And Granule

    Main features of pneumatic grain conveyor

    1. The Pneumatic Vacuum Conveyor has the characteristics of convenient, fast, labor-saving and people-saving.
    2. less dust pollution, flexible and convenient operation.
    3. Just arrange the conveying pipeline according to the needs, and you can carry out horizontal, vertical, and inclined conveying.
    4. High air pressure, long conveying distance, high lift, small size, low noise and low energy consumption.
    5. Use a special suction nozzle for local deep suction. It can go deep into the grain layer and obtain materials below 6 meters.

    Technical specification

    Model

    JZ-5

    JZ-10

    JZ-15

    JZ-20

    JZ-30

    conveyor capacity

    5T/H

    10T/H

    15T/H

    20T/H

    30T/H

    Blower Power

    7.5kw

    11kw

    15kw

    22kw

    37

    airlock power

    0.75kw

    0.75kw

    1.1kw

    1.1kw

    1.5kw

    fan speed

    3600rpm

    4100rpm

    3700rpm

    4100rpm

    4100rpm

    airlock speed

    60rpm

    60rpm

    60rpm

    60rpm

    60rpm

    feed pipe dia

    ∮124

    ∮150

    ∮150

    ∮160

    ∮160

    conveyor pipe dia

    ∮100

    ∮124

    ∮150

    ∮160

    ∮160

    Horizontal maximum transmission distance

    30mm

    50mm

    70mm

    100mm

    140mm

    Maximum horizontal absorption distance

    3.5m

    10m

    20m

    25m

    30m

    Max.lift head

    5m

    8m

    12m

    15m

    20m

    machine size

    1780*1058*1550

    1780*1058*1550

    2080*1148*1800

    2080*1210*1800

    2400*1600*2750

    Application: The pneumatic conveyor systems uses differential air pressure to efficiently move materials from one point to the others.

    For example: loading and unloading truck, ferry, boat… picking up material from ground level or storage yard and delivering to Boiler silo or filling truck for transportation….

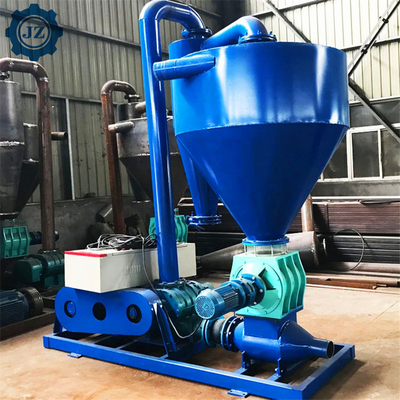

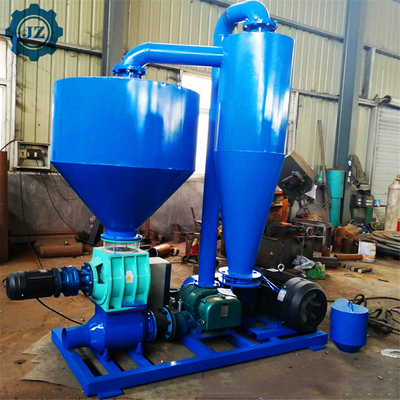

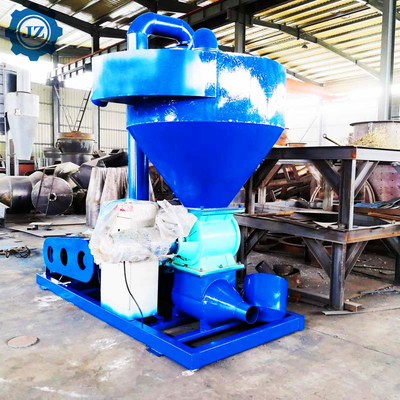

    Detailed picture

    Pneumatic Vacuum Conveyor Automatic Powder Feeder For Food Chemical Powder And Granule

    Pneumatic Vacuum Conveyor Automatic Powder Feeder For Food Chemical Powder And Granule

    Pneumatic Vacuum Conveyor Automatic Powder Feeder For Food Chemical Powder And Granule

    Pneumatic Vacuum Conveyor Automatic Powder Feeder For Food Chemical Powder And Granule

    ​Friendship Reminder

    1. The standard length of the pipeline is 30m, we can increase it according to customer requirements.
    2. In addition to normal capacity, we can also customize according to customer requirements.
    3. Voltage can be customized according to needs.
    Please tell us your needs:
    1. What are the raw materials you want to convey?
    2. Can you tell me what capacity conveyor you need?
    3. How long distance does it need to convey for you? What is the horizontal and vertical distance? How do you plan to convey the material?



    Rice husk pneumatic conveyor
    Vacuum conveyor for corn
    Pneumatic conveyor for soybeanl meal
    Pneumatic conveyor for plastic pellets
    Pneumatic conveyor for agricultural products, grains...
    Ship unloader for cement, fly ash, agricultural with high productivity..
