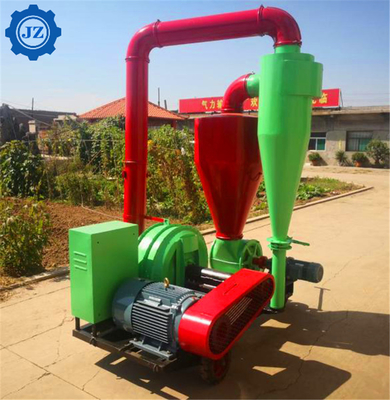

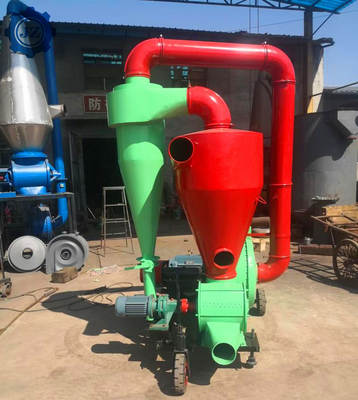

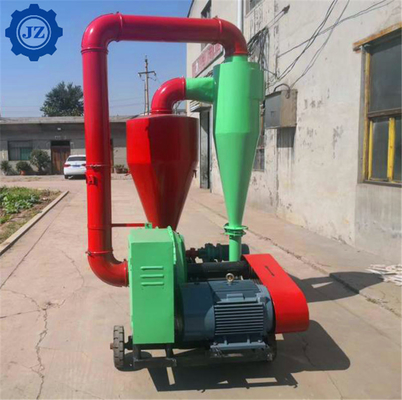

Large Grain Loading Pneumatic Suction Machine For Corn And Rice, Suction Type Air Grain Conveyor

Large Grain Loading Pneumatic Suction Machine For Corn And Rice, Suction Type Air Grain Conveyor

    • Large Grain Loading Pneumatic Suction Machine For Corn And Rice, Suction Type Air Grain Conveyor
    • Large Grain Loading Pneumatic Suction Machine For Corn And Rice, Suction Type Air Grain Conveyor
    • Large Grain Loading Pneumatic Suction Machine For Corn And Rice, Suction Type Air Grain Conveyor
    • Large Grain Loading Pneumatic Suction Machine For Corn And Rice, Suction Type Air Grain Conveyor
  • Large Grain Loading Pneumatic Suction Machine For Corn And Rice, Suction Type Air Grain Conveyor

    Product Details:

    Place of Origin: China
    Brand Name: JZ
    Certification: ISO9001:2008
    Model Number: 10T

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD3000-8000 per set
    Packaging Details: mobile grain pneumatic sucker conveyor truck loading conveyor will be packed in standard wooden case package
    Delivery Time: 5-8 work days
    Payment Terms: T/T, Western Union, L/C
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Structure: Grain Pneumatic Conveyor Material: Carbon Steel
    Function: Grain Lifting Sucker Machine | Grain Pneumatic Conveyor Application: Grain Sucker | Mobile Pneumatic Conveyor
    Usage: Grain Suction Machine | Rice Sucking Machine Voltage: 220V/380V
    Covney Distance:: 20-50meter Convey Height/depth:: 5-20meter
    Capacity: 10-30T/H Suitable Material: Rice, Wheat, Corn, Soybean, Sorghum, Barley Malt, Plastic Pellets, Chips, Resins

    Large Grain Loading Pneumatic Suction Machine For Corn And Rice, Suction Type Air Grain Conveyor

    Large Grain Loading Pneumatic Suction Machine For Corn And Rice, Suction Type Air Grain Conveyor

    Pneumatic vacuum conveyor, also called suction grain machine. It is the one kind of advanced material handling machinery, which can handle and unload grain and other bulk particles, such as wheat, rice, peanuts, soybeans, corn, rapeseed, cottonseed, feed, etc., and can also be used for non-food bulk particles, such as Plastic particles, etc.
    At the same time, we can also customize the powder conveyor for the handling of powdery materials, loading and unloading. such as cement, flour and so on

    When conveying grains, it has the effect of removing impurities and dehydrating grains.
    The application scenarios mainly include loading and unloading ships at docks, warehouse entry and exit, and food processing factories.
    At the same time, we can also customize powder conveyors for the handling, loading and unloading of powdered materials. Such as cement, flour, etc

    Working principle of pneumatic grain conveyor

    Large Grain Loading Pneumatic Suction Machine For Corn And Rice, Suction Type Air Grain Conveyor

    Its working principle is negative pressure air stream generated by the high pressure blower though the suction nozzle, suctioning the materials into the hose tube, then materials through the separation tube, air and material separated, material fell off into the air locker downward, then materials will be conveyed to the required place by positive pressure air flow. The air separated will go into the blower through the separator tube or the dust collector.

    The pneumatic conveyor is used to convey many kinds of material such as rice husk, rice, corn, wheat, soyal bean meal, cashew husk, mustard seeds, rapeseed, coffee bean, all kind of beans, agricultural product, cotton seed, fertilizer, plactics resins, cement, fly ash….

    Large Grain Loading Pneumatic Suction Machine For Corn And Rice, Suction Type Air Grain Conveyor

    Main features of pneumatic grain conveyor

    1. The Pneumatic Vacuum Conveyor has the characteristics of convenient, fast, labor-saving and people-saving.
    2. less dust pollution, flexible and convenient operation.
    3. Just arrange the conveying pipeline according to the needs, and you can carry out horizontal, vertical, and inclined conveying.
    4. High air pressure, long conveying distance, high lift, small size, low noise and low energy consumption.
    5. Use a special suction nozzle for local deep suction. It can go deep into the grain layer and obtain materials below 6 meters.

    Technical specification

    Model
    JZ-5
    JZ-10
    JZ-15
    JZ-20
    JZ-30
    conveyor capacity
    5T/H
    10T/H
    15T/H
    20T/H
    30T/H
    Blower Power
    7.5kw
    11kw
    15kw
    22kw
    37
    airlock power
    0.75kw
    0.75kw
    1.1kw
    1.1kw
    1.5kw
    fan speed
    3600rpm
    4100rpm
    3700rpm
    4100rpm
    4100rpm
    airlock speed
    60rpm
    60rpm
    60rpm
    60rpm
    60rpm
    feed pipe dia
    ∮124
    ∮150
    ∮150
    ∮160
    ∮160
    conveyor pipe dia
    ∮100
    ∮124
    ∮150
    ∮160
    ∮160
    Horizontal maximum transmission distance
    30mm
    50mm
    70mm
    100mm
    140mm
    Maximum horizontal absorption distance
    3.5m
    10m
    20m
    25m
    30m
    Max.lift head
    5m
    8m
    12m
    15m
    20m
    machine size

    1780*1058*1550

    1780*1058*1550
    2080*1148*1800
    2080*1210*1800
    2400*1600*2750

    Application: The pneumatic conveyor systems uses differential air pressure to efficiently move materials from one point to the others.

    For example: loading and unloading truck, ferry, boat… picking up material from ground level or storage yard and delivering to Boiler silo or filling truck for transportation….

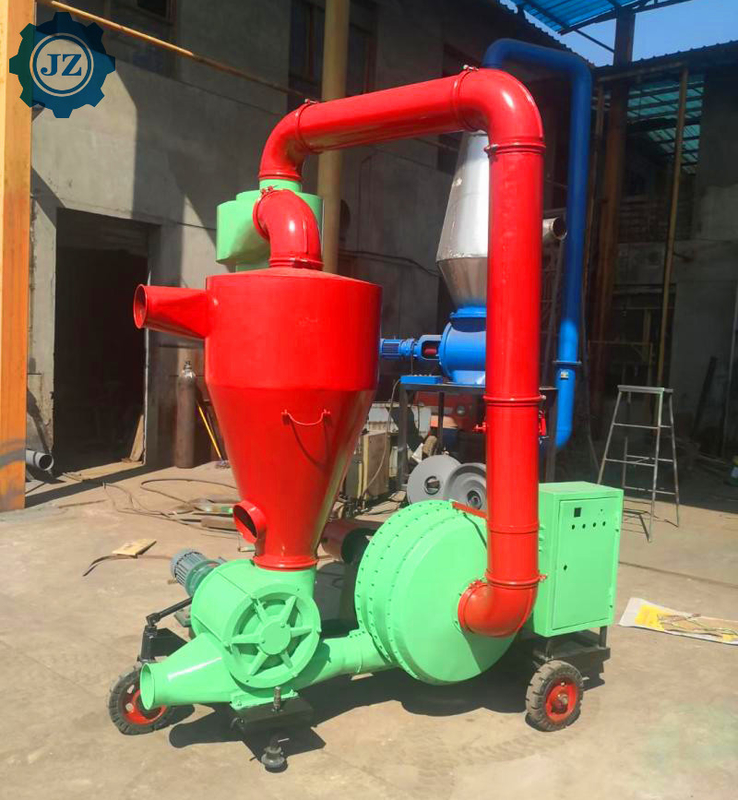

    Detailed picture

    Large Grain Loading Pneumatic Suction Machine For Corn And Rice, Suction Type Air Grain ConveyorLarge Grain Loading Pneumatic Suction Machine For Corn And Rice, Suction Type Air Grain Conveyor

    Large Grain Loading Pneumatic Suction Machine For Corn And Rice, Suction Type Air Grain Conveyor



    FAQ

    Q: What occasions are grain loading pneumatic suction and grain conveying machines suitable?
    A: It is suitable for transportation, unloading, stacking and grain processing, feed processing, beer brewing and other operations
    in production, transportation and bulk mechanization operations.
    Q: What are the advantages of grain loading pneumatic suction grain conveying machine compared with mechanical conveying?
    A: The grain-loading pneumatic suction grain conveying machine has the characteristics of high efficiency, low energy consumption,
    small pollution, small footprint, low cost, convenient connection, and automatic control.
    Q: How much is the pneumatic grain suction machine for loading grain?
    A: The price varies according to its type and material.



    Rice husk pneumatic conveyor
    Vacuum conveyor for corn
    Pneumatic conveyor for soybeanl meal
    Pneumatic conveyor for plastic pellets
    Pneumatic conveyor for agricultural products, grains...
    Ship unloader for cement, fly ash, agricultural with high productivity..
