10ton 20ton 30 ton Scrap Tire Recycling Pyrolysis To Fuel Oil, Waste Tire Recycling Plant

10ton 20ton 30 ton Scrap Tire Recycling Pyrolysis To Fuel Oil, Waste Tire Recycling Plant

    • 10ton 20ton 30 ton Scrap Tire Recycling Pyrolysis To Fuel Oil, Waste Tire Recycling Plant
    • 10ton 20ton 30 ton Scrap Tire Recycling Pyrolysis To Fuel Oil, Waste Tire Recycling Plant
    • 10ton 20ton 30 ton Scrap Tire Recycling Pyrolysis To Fuel Oil, Waste Tire Recycling Plant
    • 10ton 20ton 30 ton Scrap Tire Recycling Pyrolysis To Fuel Oil, Waste Tire Recycling Plant
    • 10ton 20ton 30 ton Scrap Tire Recycling Pyrolysis To Fuel Oil, Waste Tire Recycling Plant
  • 10ton 20ton 30 ton Scrap Tire Recycling Pyrolysis To Fuel Oil, Waste Tire Recycling Plant

    Product Details:

    Place of Origin: China
    Brand Name: HNJZ
    Certification: CE
    Model Number: JZ-30

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD 40000-50000 Set
    Packaging Details: naked package
    Delivery Time: 28 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 200 Set/Sets per Year
    Contact Now
    Detailed Product Description
    Product: Waste Tire Pyrolysis Recycling Plant Raw Material:: Waste Tyre, Used Tire, Scrap Tire
    End Product: Fuel Oil Steel Carbon Back Function: Make Oil
    Machine Type: Semi-automatically Application: Recycle Waste Tires To Oil
    Fuel Material: Coal,wood,gas,oil Operator Required: 3-4 Person
    Capacity: 30ton/day,30tpd

    10ton 20ton 30 ton Scrap Tire Recycling Pyrolysis To Fuel Oil, Waste Tire Recycling Plant​



    Waste tyre rubber recycling plant to fuel oil can turn waste tyre to fuel oil with latest pyrolysis technology. Pyrolysis is the thermal decomposition of materials in the absence of oxygen. In the case of the pyrolysis of rubber tyres, the rubber degrades under high temperatures and long-chain hydrocarbons in rubber are broken down into compounds with shorter carbon chains in the reactor, yielding oil, gas and carbon black.

    Specification

    Model
    (Diameter*Length)(mm)
    2200*5500
    2200*6000
    2200*6600
    2200*7500
    2600*6000
    2600*6600
    2800*6000
    2800*6600
    Reactor Material
    Q345R/Q245R/310S+Boiler plate/Stainless steel
    Thickness
    14mm/16mm/18mm
    Weight
    15T-35T
    Power
    Average 15Kw/h
    Space needed
    10m Width,30m-40m Length
    Labor needed
    3-4 workers
    Density of oil
    0.89/cm3
    Combustion Value
    44.30KJ/KG

    pyrolysis technology
    1) Industrial continuous type ensure the efficiency production.
    2) Exclusive low temperature pyrolysis technology, low consumption, enhance oil yield and quality, ensure long term, continuous and steady operation of production , dramatically expand equipment' lifespan.
    3) Exclusive anti-cocking, thermal distribution technology, enable the material equally heated and completely pyrolized to achieved high quality product.
    4) Perfect hot seal technology, to ensure operation safe and reliable.
    5) Gas purification and remaining heat recycling utilization technology, purified gas can be used for heating system as combustible gas, remaining heat can be dully utilized, realized self-supply for pyrolysis reaction without extra heating source, dramatically minimize running cost.
    6) Exhaust gas of production line has been tested, all emission parameter meet the requirement of EU
    7) Entire production line adopt PLC intelligent control, warning, alarm and auto-correction function, insure operation under safety condition.

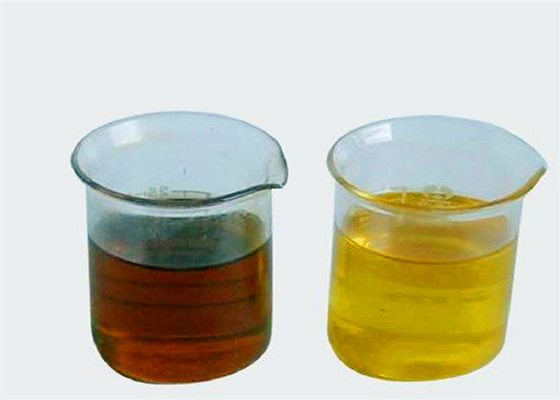

    Final product
    Usage
    Fuel oil
    Power/Glass/Cement/Boiler/Aluminum/Ceramic/Central heating factory
    Carbon black
    Conveyor belt/rubber/Automatic spare parts/Plastic pipes/Electric cable
    Steelwire
    Stright presses and sold to steel and scrap dealer
    Diesel/Gasoline
    Used in steamer,agricultural machinery,loading car,boat and other fileds

    10ton 20ton 30 ton Scrap Tire Recycling Pyrolysis To Fuel Oil, Waste Tire Recycling Plant10ton 20ton 30 ton Scrap Tire Recycling Pyrolysis To Fuel Oil, Waste Tire Recycling Plant
