5ton-30ton full automatic continuous scrap rubber tyre pyrolysis to oil equipment

5ton-30ton full automatic continuous scrap rubber tyre pyrolysis to oil equipment

    • 5ton-30ton full automatic continuous scrap rubber tyre pyrolysis to oil equipment
    • 5ton-30ton full automatic continuous scrap rubber tyre pyrolysis to oil equipment
    • 5ton-30ton full automatic continuous scrap rubber tyre pyrolysis to oil equipment
    • 5ton-30ton full automatic continuous scrap rubber tyre pyrolysis to oil equipment
  • 5ton-30ton full automatic continuous scrap rubber tyre pyrolysis to oil equipment

    Product Details:

    Place of Origin: China
    Brand Name: HNJZ
    Certification: CE
    Model Number: JZ-30

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD 40000-50000 Set
    Packaging Details: naked package
    Delivery Time: 28 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 200 Set/Sets per Year
    Contact Now
    Detailed Product Description
    Product: Waste Tire Pyrolysis Recycling Plant Raw Material:: Waste Tyre, Used Tire, Scrap Tire
    End Product: Fuel Oil Steel Carbon Back Function: Make Oil
    Machine Type: Semi-automatically Application: Recycle Waste Tires To Oil
    Fuel Material: Coal,wood,gas,oil Operator Required: 3-4 Person
    Capacity: 30ton/day,30tpd



    5ton-30ton full automatic continuous scrap rubber tyre pyrolysis to oil equipment

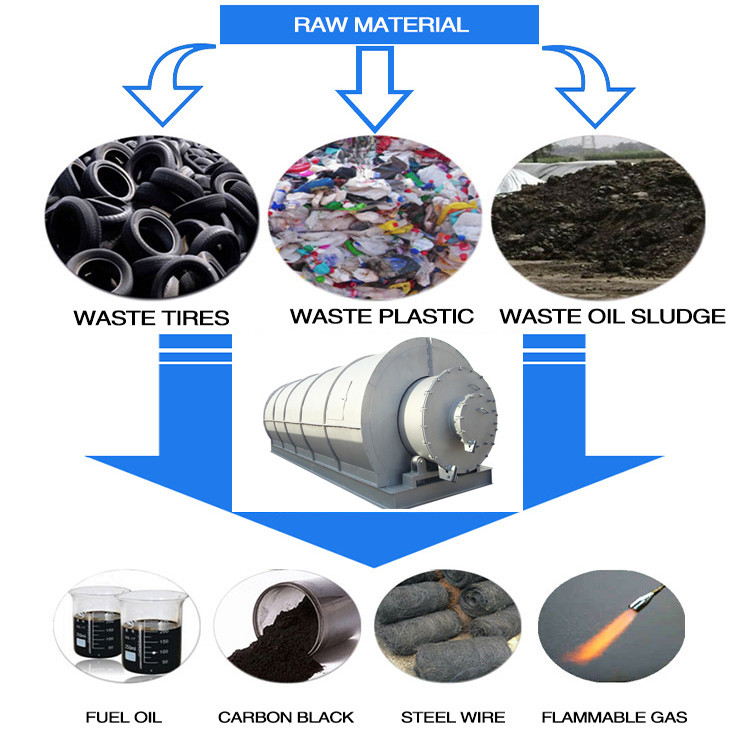

    Waste tyre rubber recycling plant to fuel oil can turn waste tyre to fuel oil with latest pyrolysis technology. Pyrolysis is the thermal decomposition of materials in the absence of oxygen. In the case of the pyrolysis of rubber tyres, the rubber degrades under high temperatures and long-chain hydrocarbons in rubber are broken down into compounds with shorter carbon chains in the reactor, yielding oil, gas and carbon black.

    Specification

    Model
    (Diameter*Length)(mm)
    2200*5500
    2200*6000
    2200*6600
    2200*7500
    2600*6000
    2600*6600
    2800*6000
    2800*6600
    Reactor Material
    Q345R/Q245R/310S+Boiler plate/Stainless steel
    Thickness
    14mm/16mm/18mm
    Weight
    15T-35T
    Power
    Average 15Kw/h
    Space needed
    10m Width,30m-40m Length
    Labor needed
    3-4 workers
    Density of oil
    0.89/cm3
    Combustion Value
    44.30KJ/KG

    pyrolysis technology
    1) Industrial continuous type ensure the efficiency production.
    2) Exclusive low temperature pyrolysis technology, low consumption, enhance oil yield and quality, ensure long term, continuous and steady operation of production , dramatically expand equipment' lifespan.
    3) Exclusive anti-cocking, thermal distribution technology, enable the material equally heated and completely pyrolized to achieved high quality product.
    4) Perfect hot seal technology, to ensure operation safe and reliable.
    5) Gas purification and remaining heat recycling utilization technology, purified gas can be used for heating system as combustible gas, remaining heat can be dully utilized, realized self-supply for pyrolysis reaction without extra heating source, dramatically minimize running cost.
    6) Exhaust gas of production line has been tested, all emission parameter meet the requirement of EU
    7) Entire production line adopt PLC intelligent control, warning, alarm and auto-correction function, insure operation under safety condition.

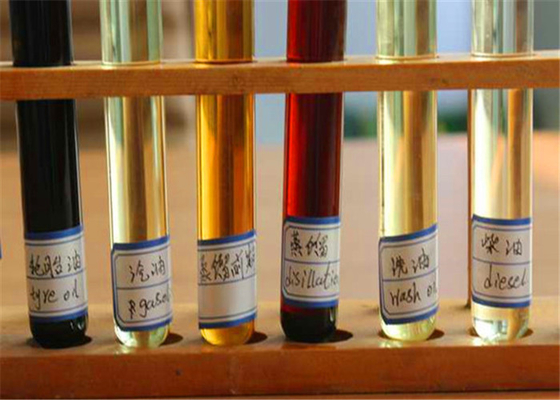

    ---Fuel oil (45% to 52%)

    1. The main product - fuel oil produced by our waste tyre pyrolysis machine is widely used for industrial and commercial purposes.With the heating value 10592.48Kcal/Kg, this fuel oil is a kind of good heating fuel which can be applied for boiler factory, cement factory,glass factory and steel mill, etc.
    2. It also can be refined to diesel by the distillation machine. The distillation diesel can be used as diesel fuel used in diesel burners or diesel generators and some diesel engines.

    ---Carbon black (30%)

    1. This Carbon black can be directly sold to cement or brick factory mix with cement or brick for heavy color.
    2. Or pellet it used for heating, just like coal, it has the heating value of 7034 kcal/kg.

    ---Steel wire (only for tires)(12% to 15%)
    Can be sell directly.

    ---Syngas (About 10%)
    We get about 10% syngas during pyrolysis process. The main component of this gases are methane (CH4), can be used for heating replace of fuel.

    5ton-30ton full automatic continuous scrap rubber tyre pyrolysis to oil equipment5ton-30ton full automatic continuous scrap rubber tyre pyrolysis to oil equipment
