Automatic 5-15TPD waste tyre pyrolysis machine Waste Plastic Pyrolysis to Fuel Oil Equipment

Automatic 5-15TPD waste tyre pyrolysis machine Waste Plastic Pyrolysis to Fuel Oil Equipment

    • Automatic 5-15TPD waste tyre pyrolysis machine Waste Plastic Pyrolysis to Fuel Oil Equipment
    • Automatic 5-15TPD waste tyre pyrolysis machine Waste Plastic Pyrolysis to Fuel Oil Equipment
    • Automatic 5-15TPD waste tyre pyrolysis machine Waste Plastic Pyrolysis to Fuel Oil Equipment
    • Automatic 5-15TPD waste tyre pyrolysis machine Waste Plastic Pyrolysis to Fuel Oil Equipment
  • Automatic 5-15TPD waste tyre pyrolysis machine Waste Plastic Pyrolysis to Fuel Oil Equipment

    Product Details:

    Place of Origin: China
    Brand Name: Jinzhen Machine
    Certification: IS9000
    Model Number: JZ-10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: USD 30000-50000 Per Set
    Packaging Details: Nude packing for the reactor , wooden box for small parts
    Delivery Time: 15 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100 sets per month
    Contact Now
    Detailed Product Description
    Raw Material:: Waste Tyre Waste Plastic Machine Type:: Waste Tire Pyrolysis Plant
    End Product:: Fuel Oil Steel Carbon Back Function: Automatic
    Capacity: 5-30 TON/DAY Operating Pressure:: Negative Pressure Tyre Pyrolysis Oil
    Fuel: Coal .wood.gas.electric Structure: Horizontal Rotation
    Reactor Material: Q245 Product: Waste Tire Pyrolysis Plant

    Automatic 5-15TPD waste tyre pyrolysis machine Waste Plastic Pyrolysis to Fuel Oil Equipment​

    Input raw mateiral

    The waste pyrolysis plant can process various kinds of waste plastic including pp , pe , ps , abs , rubber products ,tires to fuel oil , carbon black , steel wire.

    Automatic 5-15TPD waste tyre pyrolysis machine Waste Plastic Pyrolysis to Fuel Oil Equipment

    Tyre pyrolysis is: the process of converting waste tyre rubber into industrial fuels like Pyrolysis Oil, Carbon Black and Hydrocarbon Gas.

    Tyre pyrolysis involves subjecting Tyre to high temperature of 400 to 450 degree Celsius, in absence of oxygen. In case of oxygen is present tyre will start burning. During pyrolysis tyre breaks down into smaller molecules of pyrolysis oil, pyrolysis gas and carbon black. Pyrolysis is great a way of recycling waste plastics. This plant can also used for waste plastic recycling.



    Output product from the waste pyrolysis plant



    From waste tire pyrolysis plant, 4 kinds of products can be obtained: fuel oil, catbon black, steel wire, and incondensable gas. Fuel oil is widely used in industries, such as steel factory, heavy oil generator, cement factory, and boiler heating etc. Carbon black can be made into pellets for making new rubber products. Steel wire could be sold to the recycle station or steel mill for remelting. The incondensable gas is recycled to heat the pyrolysis reactor, saving energy.



    Working proccess of the waste plastic pyrolysis plant



    1. Put raw materials into reactor by auto-feeder, then heat the reactor. Do not stop heating the reactor when the temperature reaches nearly 250 degree Celsius, waste tyre will be transferred to oil gas.

    2. The oil gas will be cooled by condenser to liquid oil then collected by oil tank.

    3. The exhaust gas which can not be cooled to liquid oil will be recycled to heat the reactor. Smoke produced during processing can achieve national emission standard through dual desulfurization and dusting removal device.

    4. After oil producing finished , give 3 hours for cooling the reactor,after that carbon black will be discharged automatically.



    Product Name
    Tyre Pyrolysis Machine
    Capacity
    5TPD, 6TPD, 8TPD, 10TPD, 12TPD, 15TPD
    Reactor Material
    Q345R, Alloy Steel, Stainless Steel
    Reactor Thickness
    16.45mm, 18.45mm
    Total Weight
    30-40 tons (Varies by Design and Capacity)
    Working Power
    15-30KW(Varies by Design and Capacity)
    Labor Qty Require
    2-4 Persons for per set machine, more machine, fewer labors
    Processing Time
    Feeding 2 Hours, Processing 8-9 hours, Carbon Black and Steel Wire Discharging 1.5 hours. (Take 12TPD capacity as example)
    Application Material
    Waste Tyre, Waste Rubber, Waste Plastic, Waste Oil Sludge, Waste Aluminum Foil, Waste Cable, Waste Leather, Waste Acrylic(PMMA),etc...
    Heating Fuel
    Pyrolysis Oil, Natural Gas, Electricity, Coal, Firewood, etc...



    Our advantage
    Reactor material Adopt high pressure and temperature resistance steel plate to ensure longer service life. For some speical raw material , we use special steel plate
    High efficiency discharging Adopt screw converyor discharging device , discharge carbon black in sealed condition , no pollution and save labour and time .
    Integrated condensing device All of the condensing parts have been installed together before delivery from factory , save installation time and ensure welding quality
    Labour saving Auto feeder machine to feed raw material automatically , save labour and time.
    Motor All of the motors can be customized.
    Valves All of the valves use stainless steel.
    Non pollution Adopt 3 layers of ceramic packing dedusting device and water spray , finally no black smoke discharged out. SGS emission report provided.
    Safety devices Alarm , auto pressure releasing device , and anti back fire device , vacuum pump to ensure the machine working smoothly.

    Detail images

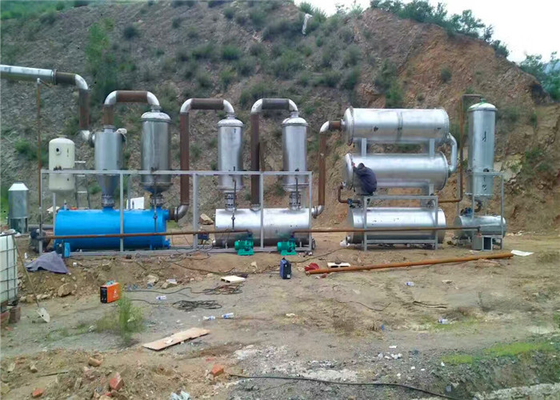

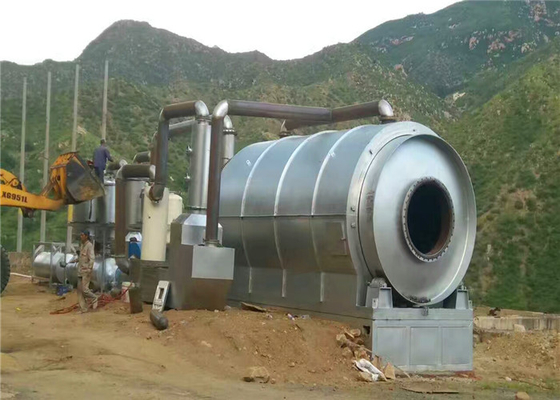

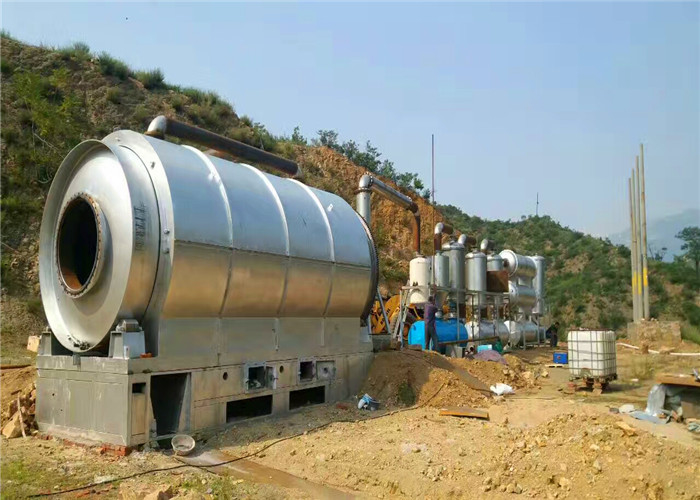

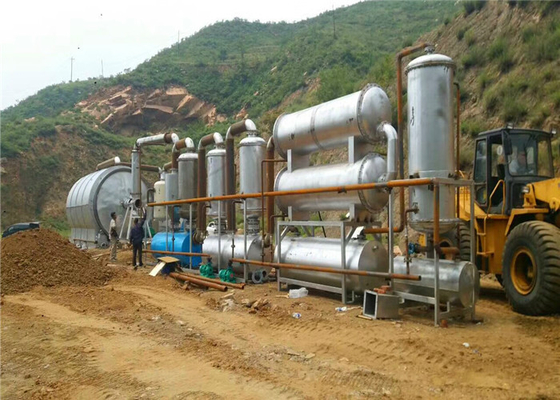

    Automatic 5-15TPD waste tyre pyrolysis machine Waste Plastic Pyrolysis to Fuel Oil EquipmentAutomatic 5-15TPD waste tyre pyrolysis machine Waste Plastic Pyrolysis to Fuel Oil EquipmentAutomatic 5-15TPD waste tyre pyrolysis machine Waste Plastic Pyrolysis to Fuel Oil EquipmentAutomatic 5-15TPD waste tyre pyrolysis machine Waste Plastic Pyrolysis to Fuel Oil Equipment
