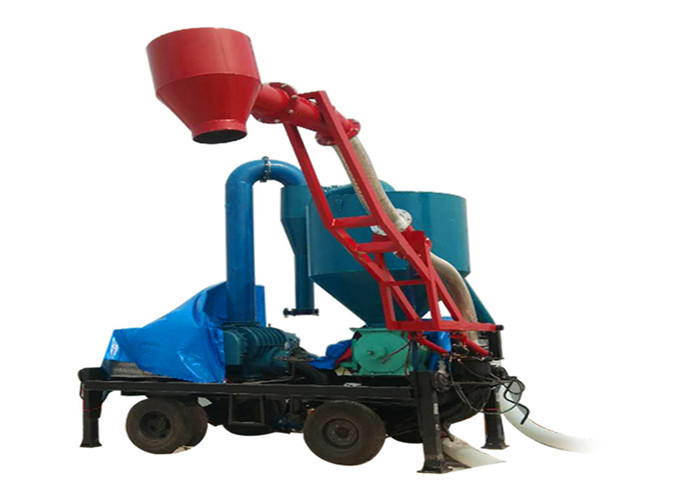

Grain Conveying Machine Mobile Conveyor Machine Price Rice Husk Pneumatic Conveyor

Grain Conveying Machine Mobile Conveyor Machine Price Rice Husk Pneumatic Conveyor

    • Grain Conveying Machine Mobile Conveyor Machine Price Rice Husk Pneumatic Conveyor
    • Grain Conveying Machine Mobile Conveyor Machine Price Rice Husk Pneumatic Conveyor
    • Grain Conveying Machine Mobile Conveyor Machine Price Rice Husk Pneumatic Conveyor
  • Grain Conveying Machine Mobile Conveyor Machine Price Rice Husk Pneumatic Conveyor

    Product Details:

    Place of Origin: China
    Brand Name: Jinzhen Machine
    Certification: ISO9001:2008
    Model Number: 10T

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD5000-9000 per set
    Packaging Details: mobile grain pneumatic sucker conveyor truck loading conveyor will be packed in standard wooden case package
    Delivery Time: 5-8 work days
    Payment Terms: T/T, Western Union, L/C
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Structure: Grain Pneumatic Conveyor Material: Carbon Steel
    Function: Grain Lifting Sucker Machine | Grain Pneumatic Conveyor Application: Grain Sucker | Mobile Pneumatic Conveyor
    Usage: Grain Suction Machine | Rice Sucking Machine Voltage: 220V/380V
    Covney Distance:: 20-50meter Convey Height/depth:: 5-20meter
    Capacity: 10-30T/H Suitable Material: Rice, Wheat, Corn, Soybean, Sorghum, Barley Malt, Plastic Pellets, Chips, Resins

    Grain Conveying Machine Mobile Conveyor Machine Price Rice Husk Pneumatic Conveyor





    Grain Suction Machine is a advanced carrying material machine , this machine has a lot of feature ,such as flexible , easy installation , transporting the material by Horizontal, inclined and vertical ways . This machine can process grain , wheat , paddy ,corn ,sorghum and other material . When transporting the material , this machine has some cleaning and dewatering effection .



    pneumatic vacuum grain conveyor is an advanced material handling equipment. It is composed of high pressure blower, air flow control valve, separator tube, air locker, connecting pipe, suction nozzle and conveying pipelines and other components. It can convey by positive pressure or suction by under vacuum circumstance. It can also conveyed by both positive and vacuum pressure at the same time after a simple combination.



    Working principle of pneumatic grain conveyor:



    Pneumatic grain conveyor is composed of the high pressure blower, air flow control valve, separator tube, air locker, connecting pipe, suction nozzle and conveying pipelines and other components. Its working principle is negative pressure air stream generated by the high pressure blower though the suction nozzle, suctioning the materials into the hose tube, then materials through the separation tube, air and material separated, material fell off into the air locker downward, then materials will be conveyed to the required place by positive pressure air flow. The air separated will go into the blower through the separator tube.



    Technical specification

    Model
    JZ-5
    JZ-10
    JZ-15
    JZ-20
    JZ-30
    conveyor capacity
    5T/H
    10T/H
    15T/H
    20T/H
    30T/H
    Blower Power
    7.5kw
    11kw
    15kw
    22kw
    37
    airlock power
    0.75kw
    0.75kw
    1.1kw
    1.1kw
    1.5kw
    fan speed
    3600rpm
    4100rpm
    3700rpm
    4100rpm
    4100rpm
    airlock speed
    60rpm
    60rpm
    60rpm
    60rpm
    60rpm
    feed pipe dia
    ∮124
    ∮150
    ∮150
    ∮160
    ∮160
    conveyor pipe dia
    ∮100
    ∮124
    ∮150
    ∮160
    ∮160
    Horizontal maximum transmission distance
    30mm
    50mm
    70mm
    100mm
    140mm
    Maximum horizontal absorption distance
    3.5m
    10m
    20m
    25m
    30m
    Max.lift head
    5m
    8m
    12m
    15m
    20m
    machine size

    1780*1058*1550

    1780*1058*1550
    2080*1148*1800
    2080*1210*1800
    2400*1600*2750



    Main features of pneumatic grain conveyor:

    1.Strong power and big conveying quantity
    Rice husk conveying machine has been exported to different countries as Russia, Saudi Arab, Iran, South Africa, Kenya, Ghana, Philippine, Thailand, Malaysia, Indonesia, Vietnam, Mexico and so on.
    2.Flexible application and grain hanging conveyor
    3. Advanced technology and cost-saving
    4. Safe and simple installation and commissioning.
    5. Simple structure and less&easy maintenance.
    6. High efficiency and energy-saving.
    7. Easy operation.



    Application: The pneumatic conveyor systems uses differential air pressure to efficiently move materials from one point to the others.
    For example: loading and unloading truck, ferry, boat… picking up material from ground level or storage yard and delivering to Boiler silo or filling truck for transportation….

    The pneumatic conveyor is used to convey many kinds of material such as rice husk, rice, corn, wheat, soyal bean meal, cashew husk, mustard seeds, rapeseed, coffee bean, all kind of beans, agricultural product, cotton seed, fertilizer, plactics resins, cement, fly ash….

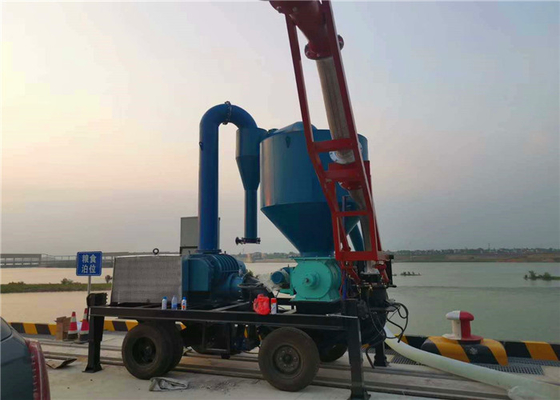

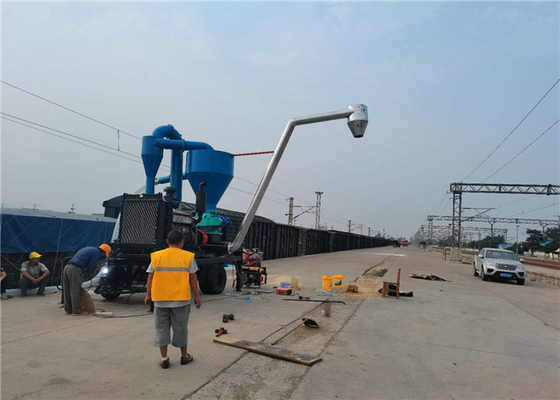

    Detailed picture

    Grain Conveying Machine Mobile Conveyor Machine Price Rice Husk Pneumatic Conveyor

    Grain Conveying Machine Mobile Conveyor Machine Price Rice Husk Pneumatic ConveyorGrain Conveying Machine Mobile Conveyor Machine Price Rice Husk Pneumatic ConveyorGrain Conveying Machine Mobile Conveyor Machine Price Rice Husk Pneumatic Conveyor

    Grain Conveying Machine Mobile Conveyor Machine Price Rice Husk Pneumatic ConveyorGrain Conveying Machine Mobile Conveyor Machine Price Rice Husk Pneumatic Conveyor



    FAQ

    Q: What occasions the Pneumatic grain conveyor is suitable for ?

    A: The Pneumatic grain conveyor is suitable for the transportation, unloading, short covering, warehouse, warehouse, stacking and grain processing, feed processing and beer brewing in the production, Transport, scattered mechanized work.

    Q: What is the advantages of the Pneumatic grain conveyor compared with mechanical transport

    A: The Pneumatic conveying is with those advantages: high efficiency, low energy consumption, small pollution, small footprint, low cost, easy to connect and self-control characteristics.

    Q: How much is the Pneumatic grain conveyor ?

    A: Price of the Pneumatic grain conveyor is different according it type and material differences.



    Rice husk pneumatic conveyor
    Vacuum conveyor for corn
    Pneumatic conveyor for soybeanl meal
    Pneumatic conveyor for plastic pellets
    Pneumatic conveyor for agricultural products, grains...
    Ship unloader for cement, fly ash, agricultural with high productivity..
