|Place of Origin:
|Minimum Order Quantity:
|USD5000-9000 per set
|mobile grain pneumatic sucker conveyor truck loading conveyor will be packed in standard wooden case package
|5-8 work days
|T/T, Western Union, L/C
|50 sets per month
|Grain Lifting Sucker Machine | Grain Pneumatic Conveyor
|Grain Sucker | Mobile Pneumatic Conveyor
|Grain Suction Machine | Rice Sucking Machine
|Rice, Wheat, Corn, Soybean, Sorghum, Barley Malt, Plastic Pellets, Chips, Resins

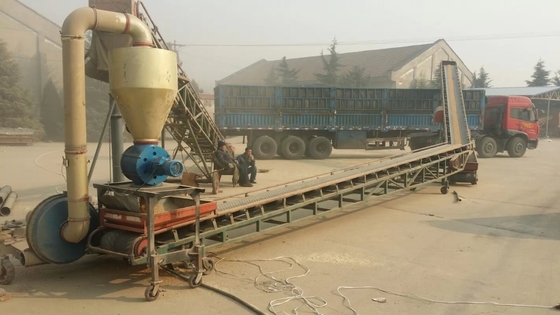

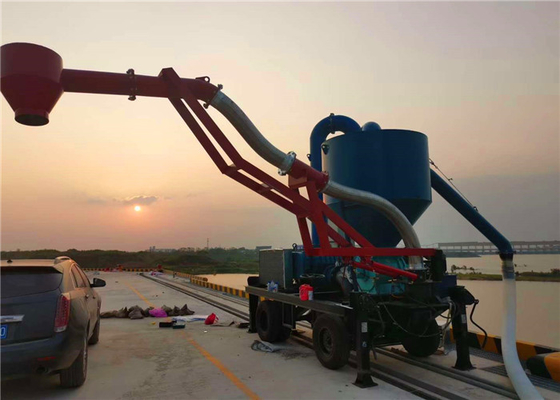

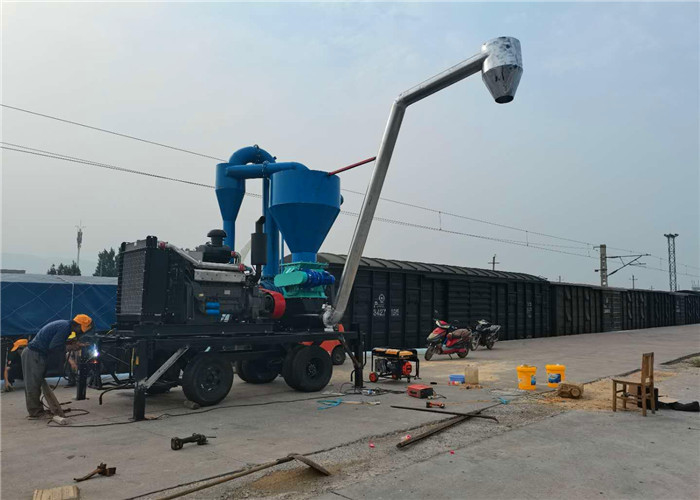

Easy To Operate Soyal Bean Meal Grain Pneumatic Vacuum Truck Loading Conveyor for loading and unloading truck, ferry
pneumatic vacuum grain conveyor is widely used in handling materials in bulk loading, bulk conveying, bulk unloading, silo to silo, stack to stack in grain, farm, railway stations, docks, grain processing and brewing industries. When using this equipment to convey grains, RB grains have been selected and dehydrated.
pneumatic vacuum grain conveyor is an advanced material handling equipment. It is composed of high pressure blower, air flow control valve, separator tube, air locker, connecting pipe, suction nozzle and conveying pipelines and other components. It can convey by positive pressure or suction by under vacuum circumstance. It can also conveyed by both positive and vacuum pressure at the same time after a simple combination.
Working principle of pneumatic grain conveyor:
Pneumatic grain conveyor is composed of the high pressure blower, air flow control valve, separator tube, air locker, connecting pipe, suction nozzle and conveying pipelines and other components. Its working principle is negative pressure air stream generated by the high pressure blower though the suction nozzle, suctioning the materials into the hose tube, then materials through the separation tube, air and material separated, material fell off into the air locker downward, then materials will be conveyed to the required place by positive pressure air flow. The air separated will go into the blower through the separator tube.
Main features of pneumatic grain conveyor:
1. Strong power and big conveying quantity
2. Flexible application and grain hanging conveyor
3. Advanced technology and cost-saving
4. Safe and simple installation and commissioning.
5. Simple structure and less&easy maintenance.
6. High efficiency and energy-saving.
7. Easy operation.
