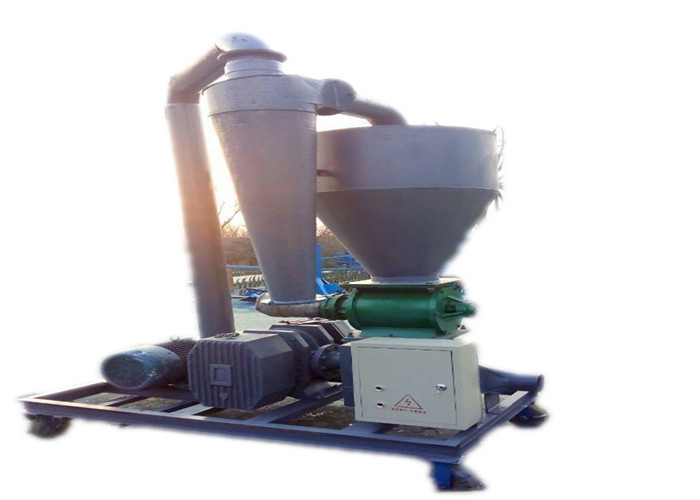

Truck Ship Loader Unloader Rice Husk Air Grain Pneumatic Suction Conveyor/pneumatic vacuum grain conveyor

Truck Ship Loader Unloader Rice Husk Air Grain Pneumatic Suction Conveyor/pneumatic vacuum grain conveyor

    • Truck Ship Loader Unloader Rice Husk Air Grain Pneumatic Suction Conveyor/pneumatic vacuum grain conveyor
    • Truck Ship Loader Unloader Rice Husk Air Grain Pneumatic Suction Conveyor/pneumatic vacuum grain conveyor
    • Truck Ship Loader Unloader Rice Husk Air Grain Pneumatic Suction Conveyor/pneumatic vacuum grain conveyor
  • Truck Ship Loader Unloader Rice Husk Air Grain Pneumatic Suction Conveyor/pneumatic vacuum grain conveyor

    Product Details:

    Place of Origin: China
    Brand Name: JZ
    Certification: ISO9001:2008
    Model Number: 10T

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD5000-9000 per set
    Packaging Details: mobile grain pneumatic sucker conveyor truck loading conveyor will be packed in standard wooden case package
    Delivery Time: 5-8 work days
    Payment Terms: T/T, Western Union, L/C
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Structure: Pneumatic Conveyor Material: Carbon Steel
    Function: Grain Lifting Sucker Machine | Grain Pneumatic Conveyor Application: Grain Sucker | Mobile Pneumatic Conveyor
    Usage: Grain Suction Machine | Rice Sucking Machine Voltage: 220V/380V
    Covney Distance:: 20-50meter Convey Height/depth:: 5-20meter
    Capacity: 10-30T/H Suitable Material: Rice, Wheat, Corn, Soybean, Sorghum, Barley Malt, Plastic Pellets, Chips, Resins

    Truck Ship Loader Unloader Rice Husk Air Grain Pneumatic Suction Conveyor/pneumatic vacuum grain conveyor



    pneumatic vacuum grain conveyor can be used to convey granular materials horizontally, slantly and vertically such as rice, wheat, corn, soybean, sorghum, barley malt, plastic pellets, chips, resins and other granular.This kind of equipment is compact and flexible. It can loading and unloading the material quickly and easily.

    pneumatic vacuum grain conveyor is an advanced material handling equipment. It is composed of high pressure blower, air flow control valve, separator tube, air locker, connecting pipe, suction nozzle and conveying pipelines and other components. It can convey by positive pressure or suction by under vacuum circumstance. It can also conveyed by both positive and vacuum pressure at the same time after a simple combination.



    Working principle of pneumatic grain conveyor:



    Pneumatic grain conveyor is composed of the high pressure blower, air flow control valve, separator tube, air locker, connecting pipe, suction nozzle and conveying pipelines and other components. Its working principle is negative pressure air stream generated by the high pressure blower though the suction nozzle, suctioning the materials into the hose tube, then materials through the separation tube, air and material separated, material fell off into the air locker downward, then materials will be conveyed to the required place by positive pressure air flow. The air separated will go into the blower through the separator tube.



    Technical specification

    Model
    JZ-5
    JZ-10
    JZ-15
    JZ-20
    JZ-30
    conveyor capacity
    5T/H
    10T/H
    15T/H
    20T/H
    30T/H
    Blower Power
    7.5kw
    11kw
    15kw
    22kw
    37
    airlock power
    0.75kw
    0.75kw
    1.1kw
    1.1kw
    1.5kw
    fan speed
    3600rpm
    4100rpm
    3700rpm
    4100rpm
    4100rpm
    airlock speed
    60rpm
    60rpm
    60rpm
    60rpm
    60rpm
    feed pipe dia
    ∮124
    ∮150
    ∮150
    ∮160
    ∮160
    conveyor pipe dia
    ∮100
    ∮124
    ∮150
    ∮160
    ∮160
    Horizontal maximum transmission distance
    30mm
    50mm
    70mm
    100mm
    140mm
    Maximum horizontal absorption distance
    3.5m
    10m
    20m
    25m
    30m
    Max.lift head
    5m
    8m
    12m
    15m
    20m
    machine size

    1780*1058*1550

    1780*1058*1550
    2080*1148*1800
    2080*1210*1800
    2400*1600*2750



    Main features of pneumatic grain conveyor:


    1. Strong power and big conveying quantity
    2. Flexible application and grain hanging conveyor
    3. Advanced technology and cost-saving
    4. Safe and simple installation and commissioning.
    5. Simple structure and less&easy maintenance.
    6. High efficiency and energy-saving.
    7. Easy operation.



    pneumatic vacuum grain conveyor is widely used in handling materials in bulk loading, bulk conveying, bulk unloading, silo to silo, stack to stack in grain, farm, railway stations, docks, grain processing and brewing industries. When using this equipment to convey grains, RB grains have been selected and dehydrated.

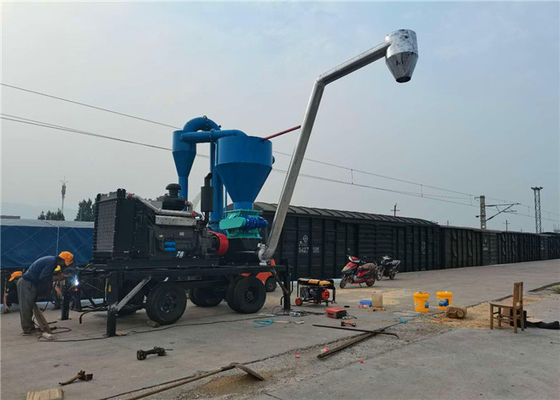

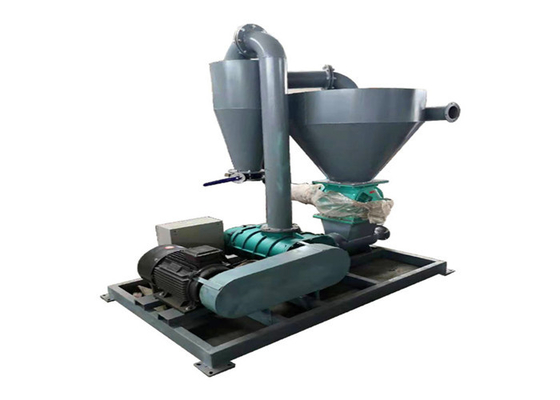

    Detailed picture

    Truck Ship Loader Unloader Rice Husk Air Grain Pneumatic Suction Conveyor/pneumatic vacuum grain conveyor

    Truck Ship Loader Unloader Rice Husk Air Grain Pneumatic Suction Conveyor/pneumatic vacuum grain conveyorTruck Ship Loader Unloader Rice Husk Air Grain Pneumatic Suction Conveyor/pneumatic vacuum grain conveyor



    FAQ

    Q: What occasions the Pneumatic grain conveyor is suitable for ?

    A: The Pneumatic grain conveyor is suitable for the transportation, unloading, short covering, warehouse, warehouse, stacking and grain processing, feed processing and beer brewing in the production, Transport, scattered mechanized work.

    Q: What is the advantages of the Pneumatic grain conveyor compared with mechanical transport

    A: The Pneumatic conveying is with those advantages: high efficiency, low energy consumption, small pollution, small footprint, low cost, easy to connect and self-control characteristics.

    Q: How much is the Pneumatic grain conveyor ?

    A: Price of the Pneumatic grain conveyor is different according it type and material differences.
